COM-ICDB7-A10-0004
Brand: AAEON [An ASUS Co.]
Categories:

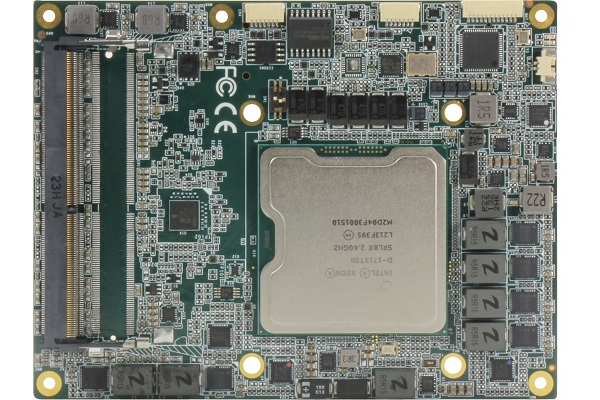

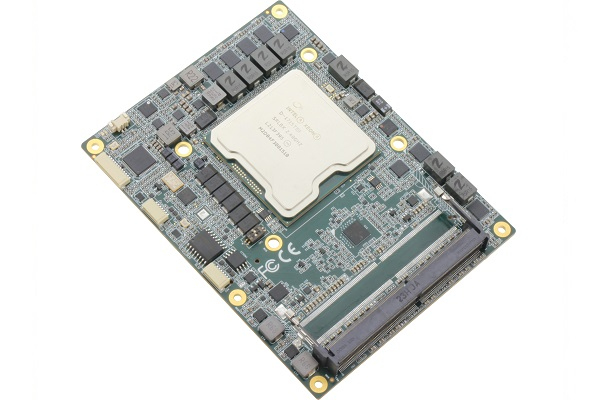

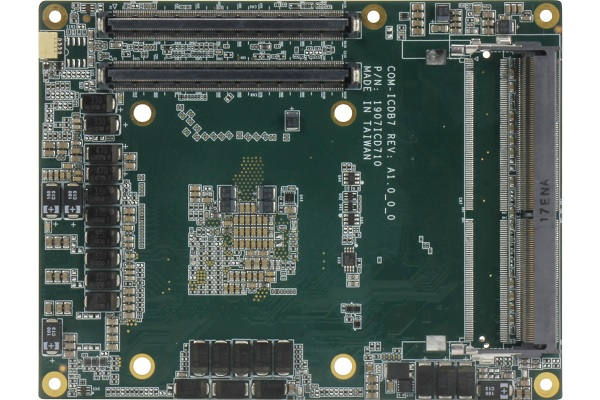

COM-ICDB7-A10-0004 is an industrial COM Express Type 7 motherboard for high-speed data processing and server solutions with Intel® Xeon® D-1715TER processor.
Intel® i210IT x 1 and 10GbE x 4 LAN ports provide robust network connectivity.
PCIe [x2] x 8, PCIe [x16] x 1 expansion slots provide extensive scalability and storage options.
It is convenient for data management with UART (Tx/Rx) x 2, GPIO 8 Bit support and SATA3 x 2 storage support.
With its 0°C ~ 60°C operating temperature, DC 12V supply voltage and CE certification, it is compatible with Windows 10 and Linux Ubuntu 20.04 operating systems.
Features
| Product Code | COM-ICDB7-A10-0004 |
| Form Factor | COM Express Type 7 |
| Card Size (mm) | 125 x 95 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® D-1715TER 8 Core 2.10 / 2.70 GHz | BM : 9000 |
| Processor [CPU] Family | Intel® Xeon® |
| RAM [System Memory] | DDR4 x 2 |
| SSD/HDD/mSATA/M.2 | SATA3 x 2 |
| LAN/Ethernet | Intel® i210-IT x 1 | 10GbE x 4 |
| USB 3.2 | x4 |
| USB 2.0 | x4 |
| UART | (Tx /Rx) x 2 |
| Video Output | x 0 |
| Digital I/O | GPIO 8 Bit |
| Expansion Slot | PCIe [x2] x 8 | PCIe [x16] x 1 | PCIe [x2] x 8 | PCIe [x16] x 1 |
| SMBUS | x1 |
| Supply Voltage | DC 12V |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux Ubuntu 20.04 | Operating system sold separately from license. |
