BOXER-8652AI-JP511N-A2-1010
Brand: AAEON [An ASUS Co.]
Categories: Ultra Slim Box PC
BOXER-8652AI-JP511N-A2-1010 is an AI-supported ultra-slim embedded system that provides superior performance in artificial intelligence and object detection applications.
Accelerates real-time data analysis and machine learning tasks with NVIDIA® Jetson Orin™ NX module.

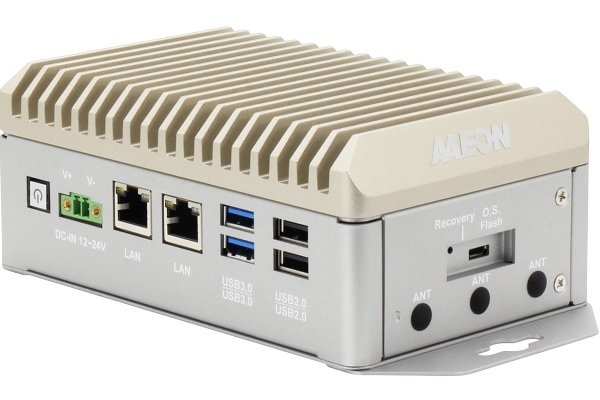

Dual Gigabit Ethernet LAN ports are optimized for integration with IP cameras and network devices.

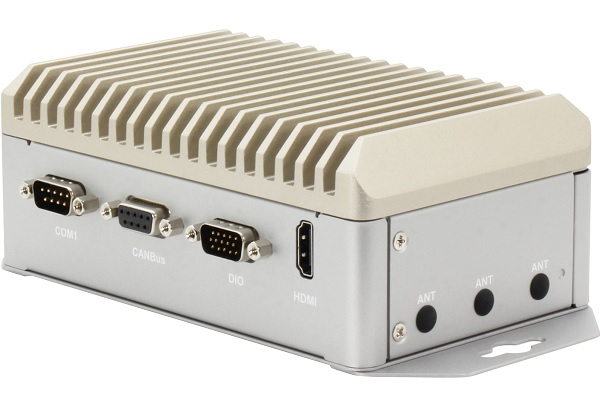

It offers advanced connectivity options with HDMI x 1 video output, USB 3.2 x 2, USB 2.0 x 2, RS-232/422/485 x 1 serial ports.
It operates in the temperature range of -15°C ~ 60°C, has a DC 12-24V supply voltage and is compatible with the Linux (NVIDIA JetPack™ 5.0) operating system with CE / FCC certifications.
Features
| Product Code | BOXER-8652AI-JP511N-A2-1010 |
| AI Accelerator| GPU | NVIDIA® Jetson™ Orin™ NX 16 GB |
| Cooling | Fanless |
| Processor [CPU] | Quad Core ARM® Cortex® A57 MPCore |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 8 GB Onboard |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x2 |
| USB 2.0 | x2 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 1 |
| Digital I/O | GPIO 13Bit |
| Expansion Slot | M.2 E Key x 1 | M.2 Key x 1 | M Key x 1 |
| Wireless | 802.11 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12-24V |
| Working temperature | -15°C ~ 60°C |
| External Dimensions (mm) | 152 x 96 x 61.5 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Linux (NVIDIA Jetpack™ 5.0) |
