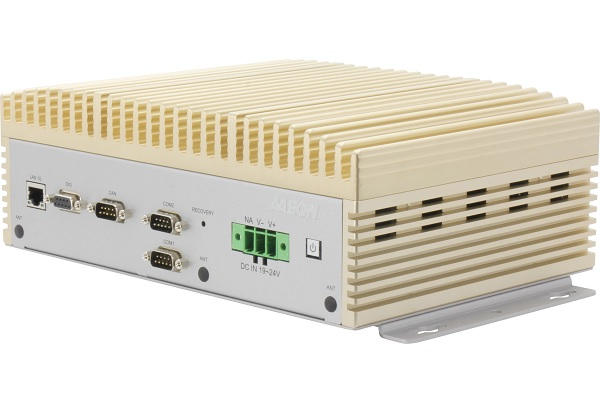

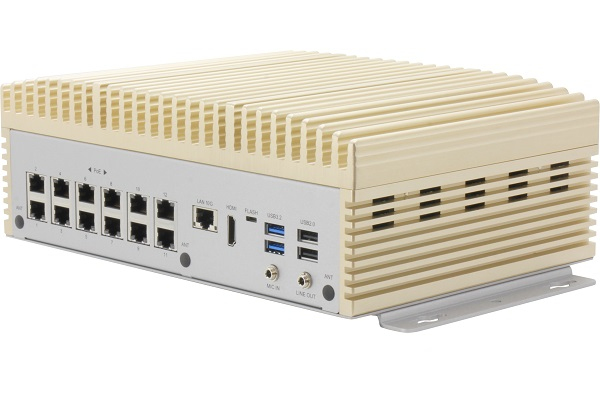

BOXER-8646AI-JP511E-A1-1010
Brand: AAEON [An ASUS Co.]
Categories: Ultra Slim Box PC
BOXER-8646AI-JP511E-A1-1010 is an industrial AI computer designed for AI@Edge computing, offering 12 PoE/PSE GbE LAN connections.
Powered by the NVIDIA® Jetson AGX Orin™ module optimized for AI applications.
12 PoE supported LAN ports provide high-speed data transfer with 10G LAN and 1G LAN connections.
It offers extensive connectivity options with HDMI x 1 video output, USB 3.2 x 2, USB 2.0 x 2, RS-232/422/485 x 2 serial ports.
It operates in the temperature range of -20°C ~ 55°C, has a DC 19-24V supply voltage and is compatible with the Linux (NVIDIA JetPack™ 5.0) operating system with CE / FCC certifications.
Features
| Product Code | BOXER-8646AI-JP511E-A1-1010 |
| AI Accelerator| GPU | NVIDIA® Jetson™ AGX Orin™ |
| Cooling | Fanless |
| Processor [CPU] | 6 Core ARM® Carmel® V8.2 64bit |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 32 GB Onboard |
| SSD/HDD/mSATA/M.2 | M.2 NVME x 1 | 64 GB eMMC |
| LAN/Ethernet | PoE LAN x 12 | 10G LAN x 1 | GbE LAN x 1 |
| USB 3.2 | x2 |
| USB 2.0 | x2 |
| RS 232/422/485 Serial Port | x2 |
| Video Output | HDMI x 1 |
| Digital I/O | 8DIO |
| Expansion Slot | M.2 M Key x 1 | M.2 E Key x 1 | M.2 B Key x 1 | SIM x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 19-24 V |
| Working temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 264.76 x 1840 x 93.30 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Linux (NVIDIA Jetpack™ 5.0) |
