BOXER-8642AI-JP511E-A2-1010
Brand: AAEON [An ASUS Co.]
Categories: Ultra Slim Box PC

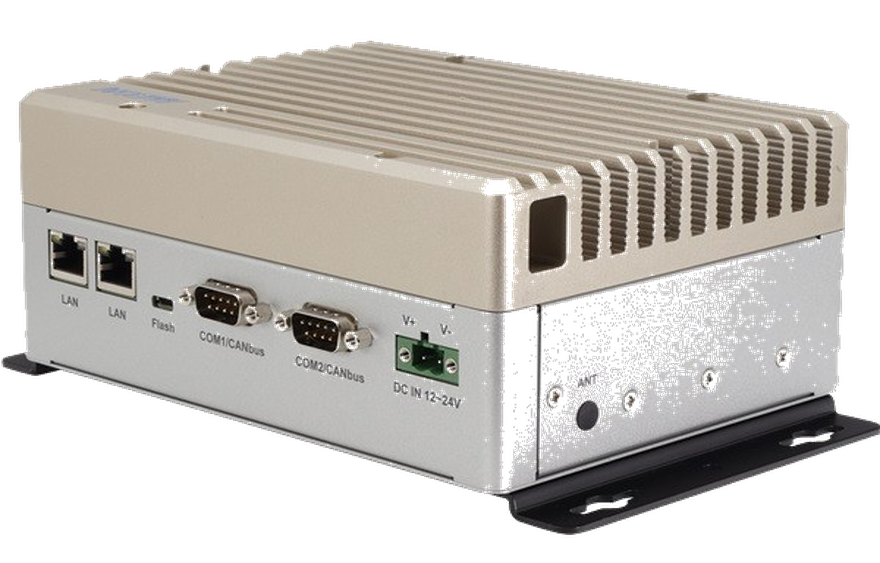

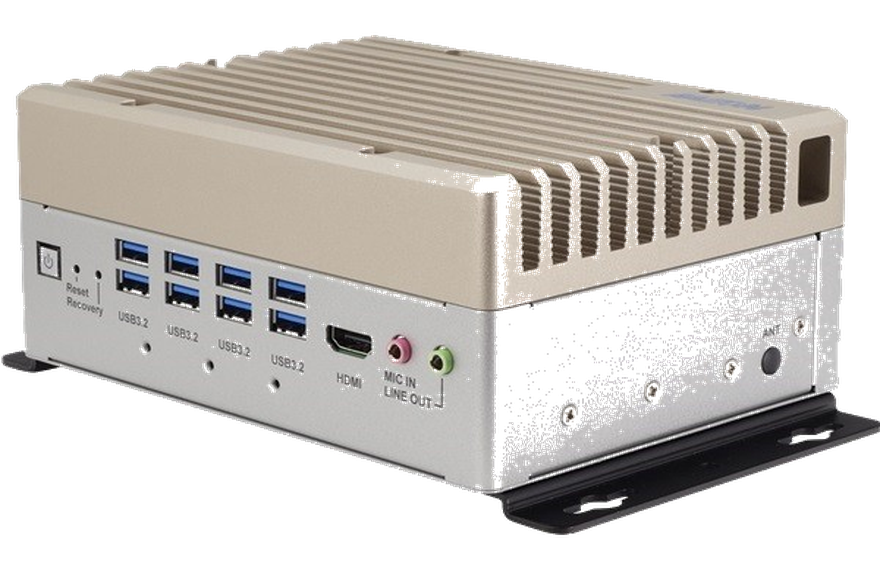

BOXER-8642AI-JP511E-A2-1010, AI@Edge Fanless Embedded System with NVIDIA® Jetson™ AGX Orin™ 64GB.
12 Core ARM Cortex®-A78AE CPU, 64 GB LPDDR5 RAM, 64 GB eMMC.
2 x GbE LAN, 8 x USB 3.2, 2 x RS-232/422/485, HDMI x1 video output.
M.2 2230 E-Key x1, DC 12-24V input, -20°C ~ 55°C operating temperature, supports Linux (NVIDIA Jetpack™ 5.1.2 and above).
Features
| Product Code | BOXER-8642AI-JP511E-A2-1010 |
| AI Accelerator| GPU | NVIDIA® Jetson™ AGX Orin™ 64 GB |
| Cooling | Fanless |
| Processor [CPU] | 6 Core ARM® Carmel® V8.2 64bit |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 32 GB | 64 GB LPDDR5 |
| SSD/HDD/mSATA/M.2 | 64 GB eMMC + 2.5”SATA SSD drive bay |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x8 |
| RS 232/422/485 Serial Port | x2 |
| Video Output | HDMI x 1 |
| Audio Output | Mic-in x 1 Line-Out x 1 |
| Expansion Slot | M.2 2230 E-Key x 1 (Wi-Fi/BT) |
| Mounting Type | Wallmount |
| Supply voltage | DC 12-24V |
| Working temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 180.0 x 136.0 x 78 |
| Certificates | CE/FCC Class A |
| Supported Operating Systems | Linux (NVIDIA Jetpack™ 5.0) |
