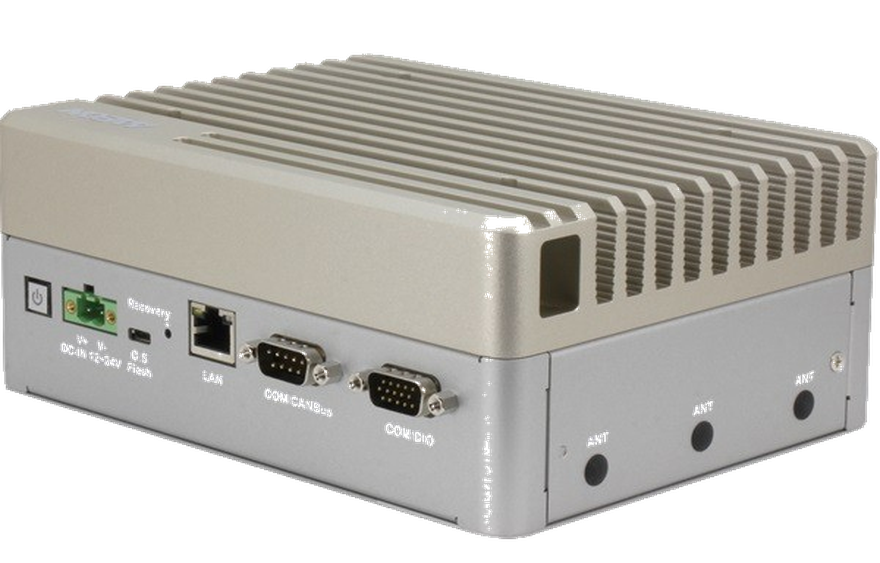

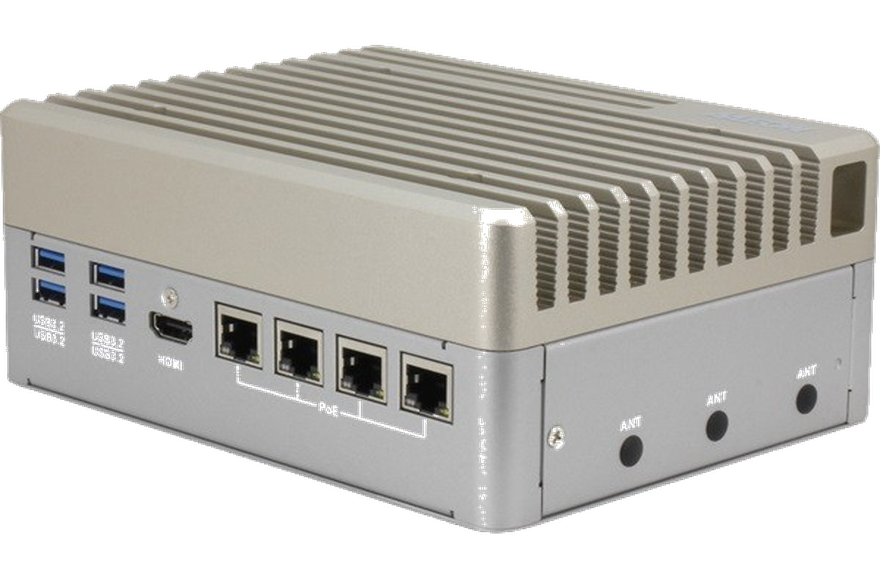

BOXER-8623AI-JP511N-A2-1010
Brand: AAEON [An ASUS Co.]
Categories: Ultra Slim Box PC
BOXER-8623AI-JP511N-A2-1010, AI@Edge Computer for Harsh Environments.
It features the powerful Jetson Orin Nano™ chipset that can handle multiple AI workloads.
4GB LPDDR5 RAM, 128GB NVMe M.2 storage support.
1 x GbE LAN, 4 x USB 3.2, 1 x RS-232, HDMI video output.
It can operate in the temperature range of -15°C ~ 65°C, supports Linux.
Features
| Product Code | BOXER-8623AI-JP511N-A2-1010 |
| AI Accelerator| GPU | NVIDIA® Jetson™ Orin Nano™ 8 GB |
| Cooling | Fanless |
| Processor [CPU] | Quad Core ARM® Cortex® A57 MPCore |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 4 GB Onboard LPDDR5 |
| SSD/HDD/mSATA/M.2 | M.2 2280 M-Key x 1 for (Standard: 128 GB) |
| LAN/Ethernet | GbE x 1 |
| USB 3.2 | x4 |
| Video Output | HDMI x 1 |
| Expansion Slot | M.2 2280 M-Key x 1 (NVMe)M.2 3042/3052 B-Key x 1M.2 2230 E-Key x 1SIM Slot x 1 |
| Mounting Type | Wall mount |
| Working temperature | -15°C ~ 65°C |
| External Dimensions (mm) | 180 x 136 x 75 |
| Certificates | CE/FCC class A |
| Supported Operating Systems | Linux (NVIDIA Jetpack™ 5.0) |
