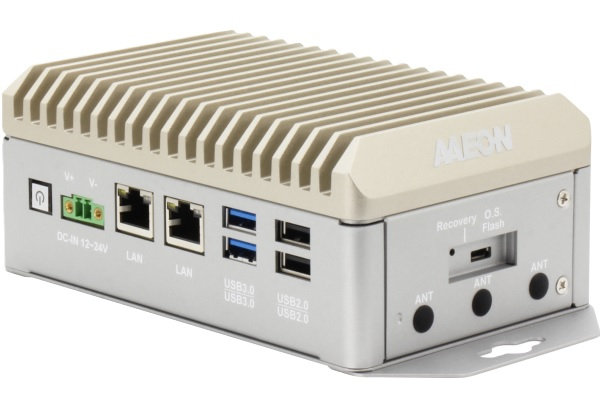

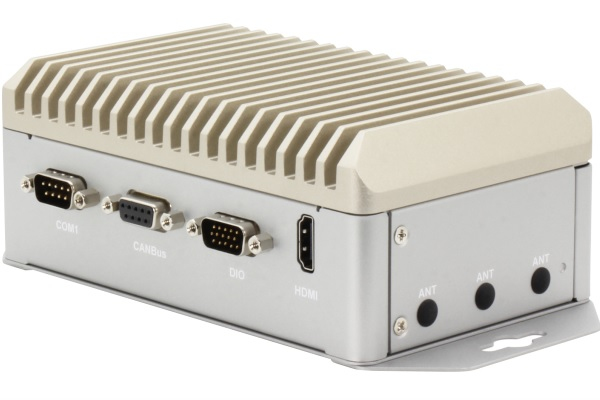

BOXER-8622AI-JP511N-A1-1010
Brand: AAEON [An ASUS Co.]
Categories: Ultra Slim Box PC
BOXER-8622AI-JP511N-A1-1010, NVIDIA® Jetson™ Orin™ AI System with Dual GbE LAN.
Compact, fanless design for smart retail and industrial automation.
4GB RAM, M.2 M Key storage slot.
2 x GbE LAN, 2 x USB 3.2, 1 x RS-232/485, HDMI video output.
DC 12-24V input voltage, can work in the temperature range of -20°C ~ 60°C, supports Linux.
Features
| Product Code | BOXER-8622AI-JP511N-A1-1010 |
| AI Accelerator| GPU | NVIDIA® Jetson™ Orin Nano™ 4 GB |
| Cooling | Fanless |
| Processor [CPU] | Quad Core ARM® Cortex® A57 MPCore |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 4 GB Onboard |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x2 |
| USB 2.0 | x2 |
| CANBus | x1 |
| RS 232/422/485 Serial Port | x1 |
| Video Output | HDMI x 1 |
| Digital I/O | GPIO 13Bit |
| Mounting Type | wall mount |
| Supply Voltage | DC 12-24V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 152 x 96 x 61.5 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Linux (NVIDIA Jetpack™ 5.0) |
