BOXER-8253AI-A1-1011
Brand: AAEON [An ASUS Co.]
Categories: Ultra Slim Box PC
BOXER-8253AI-A1-1011, High-Performance AI@Edge System with NVIDIA® Jetson Xavier™ NX.
Powerful image processing and AI computing capabilities with 384 CUDA + 48 Tensor cores.

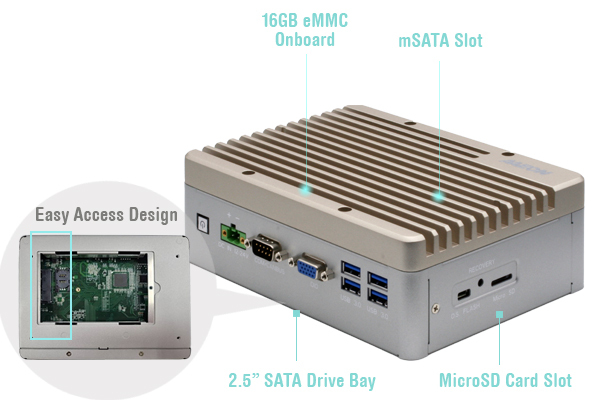

8GB RAM, 16GB eMMC + MicroSD, mSATA, 2.5” SATA support.

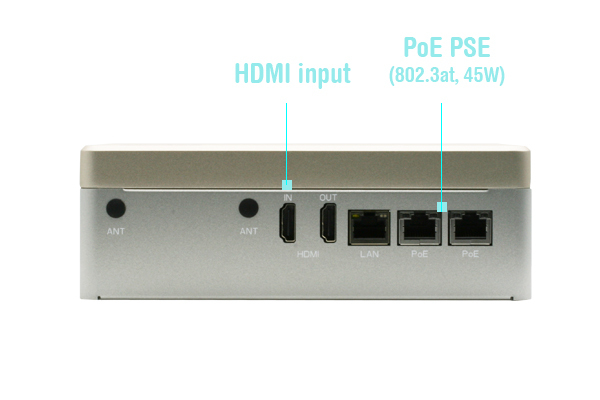

3 x GbE LAN + 2 x PoE LAN, 4 x USB 3.2, 2 x RS-232/485, 2 x HDMI video output.
DC 12-24V input voltage, working temperature range of -15°C ~ 55°C, supports Linux (NVIDIA Jetpack™ 4.5).
Features
| Product Code | BOXER-8253AI-A1-1011 |
| AI Accelerator| GPU | NVIDIA® Jetson™ AGX Xavier™ NX |
| Cooling | Fanless |
| Processor [CPU] | 6 Core ARM® Cortex® A78AE ARM® v8.2 64bit |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 8 GB Onboard |
| SSD/HDD/mSATA/M.2 | 16 GB eMMC | MicroSD x 1 |
| LAN/Ethernet | GbE x 3 + PoE x 2 |
| USB 3.2 | x4 |
| RS 232 Serial Port | x1 |
| RS 232/485/CANBUS Serial Port | x1 |
| Video Output | HDMI x 2 + DVI-I x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | M.2 E Key x 1 | SIM x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12-24V |
| Working temperature | -15°C ~ 55°C |
| External Dimensions (mm) | 180 x 136 x 61.1 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Linux (NVIDIA Jetpack™ 4.5) |
