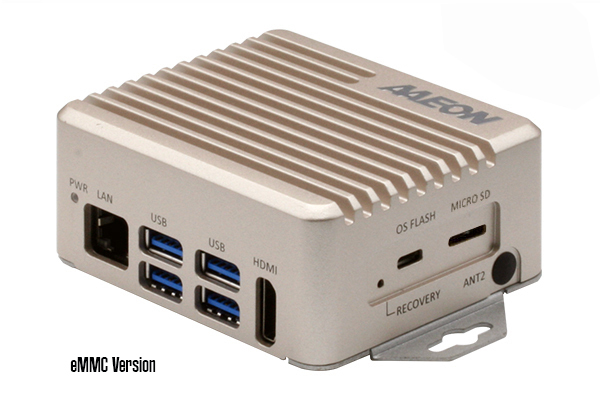

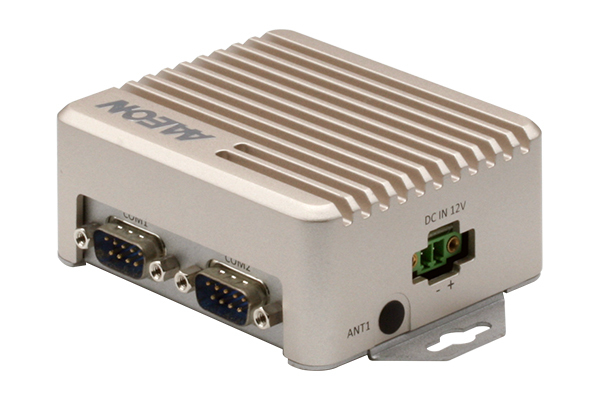

BOXER-8221AI-A4-1110
Brand: AAEON [An ASUS Co.]
Categories: Ultra Slim Box PC

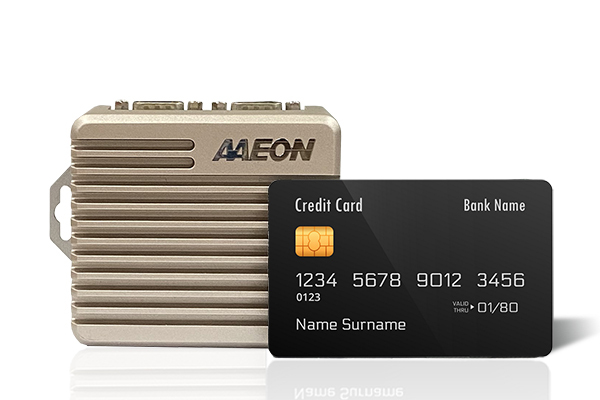

BOXER-8221AI-A4-1110 is an ultra-thin form factor AI-powered Box PC optimized with the NVIDIA® Jetson™ Nano™ platform.
It delivers high performance with Quad Core ARM® Cortex®-A57 MPCore + 128 CUDA GPU cores.
4 GB RAM, 32 GB MicroSD storage support, has high-speed data processing capacity.
Various connectivity options are available with 1 x GbE LAN, 4 x USB 3.0, 1 x RS-232, HDMI video output.
It can operate in the temperature range of -20°C ~ 55°C with DC 12V input voltage and supports Linux (NVIDIA Jetpack™ 4.5).
Features
| Product Code | BOXER-8221AI-A4-1110 |
| AI Accelerator| GPU | NVIDIA® Jetson™ Nano™ |
| Cooling | Fanless |
| Processor [CPU] | 6 Core ARM® Cortex® A78AE ARM® v8.2 64bit |
| Processor [CPU] Family | ARM® |
| RAM [System Memory] | 4 GB |
| SSD/HDD/mSATA/M.2 | 32 GB Micro SD x 1 |
| LAN/Ethernet | GbE x 1 |
| USB 3.0 | x4 |
| RS 232 Serial Port | x1 |
| Video Output | HDMI x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12V |
| Working temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 88 x 75 x 39 |
| Body Material | Aluminum |
| Certificates | CE | FCC | CCC | LVD |
| Supported Operating Systems | Linux (NVIDIA Jetpack™ 4.5) |
