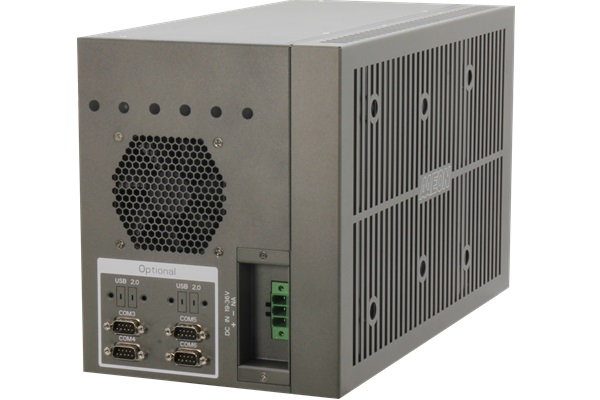

BOXER-6843-ADS-A1-1010
Brand: AAEON [An ASUS Co.]
Categories: Expandable Box PC
BOXER-6843-ADS-A1-1010 is designed as a fan embedded controller with 12th and 13th Generation Intel® Core™ / Celeron® processors.
Supports Intel® Core™ 12th Gen - 13th Gen i9 | i7 | i5 | i3 | Pentium™ | Celeron® processors and delivers high performance.
DDR5 [Max 128 GB] RAM support provides expandability with M.2 NVME x 2 | 2.5" SATA x 2 storage options.
It offers extensive connectivity options with 3 x 2.5GbE LAN ports, 8 x USB 3.2, 6 x RS-232/422/485 serial ports and HDMI x 2 + DP x 2 video output.
DC 12-36V wide voltage range, can work in the temperature range of -20°C ~ 45°C, and is compatible with Windows 10, Windows 11, Linux Ubuntu 20.04 operating systems.
Features
| Product Code | BOXER-6843-ADS-A1-1010 |
| AI Accelerator| GPU | NVIDIA® L4 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | DDR5 [Max 128 GB] |
| SSD/HDD/mSATA/M.2 | M.2 NVME x 2 | 2.5" SATA x 2 |
| LAN/Ethernet | 2.5GbE x 3 [Intel® i226-IT] | GbE x 1 with LED Indicator [Intel® i219-LM] |
| USB 3.2 | x8 |
| RS 232/422/485 Serial Port | x6 |
| Video Output | HDMI x 2 + DP x 2 |
| Digital I/O | GPIO 8Bit |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | M.2 E Key x 1 | M.2 B Key x 1 | SIM x 1 | PCIe [x4] x 1 | PCIe [x 16] x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12-36V |
| Working temperature | -20°C ~ 45°C |
| External Dimensions (mm) | 186.8 x 226.5 x 375 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
