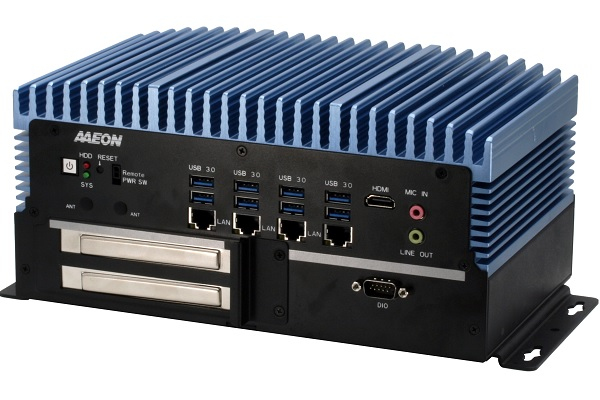

BOXER-6839-CFL-A2-1010
Brand: AAEON [An ASUS Co.]
Categories: Expandable Box PC
BOXER-6839-CFL-A2-1010 is a Box PC offering extensive I/O connections and expandability for Industrial automation and artificial intelligence applications.
Provides high performance by supporting Intel® Xeon® | Core™ 8th Gen i9 | i7 | i5 | i3 | Pentium® processors.
[Max 64 GB] RAM support offers expansion with 2.5" SATA x 2 | RAID | CFast x 1 storage options.

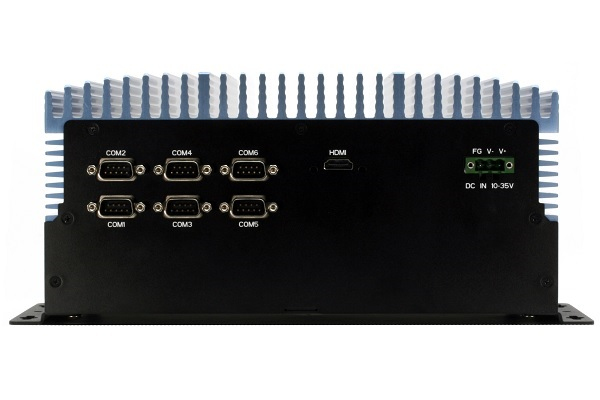

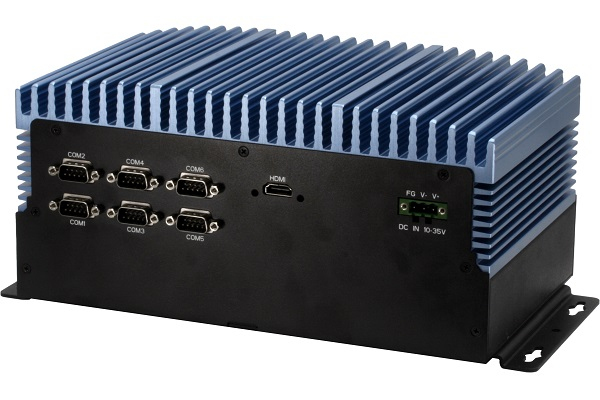

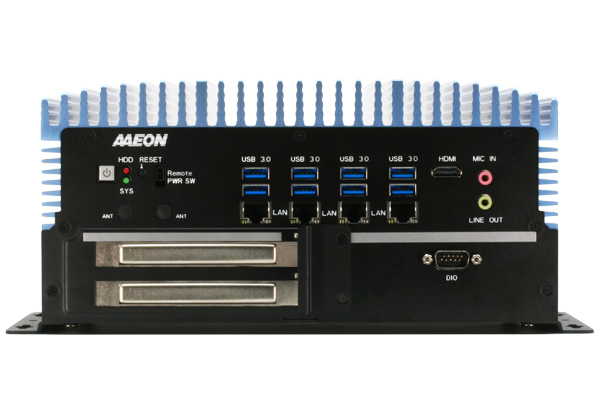

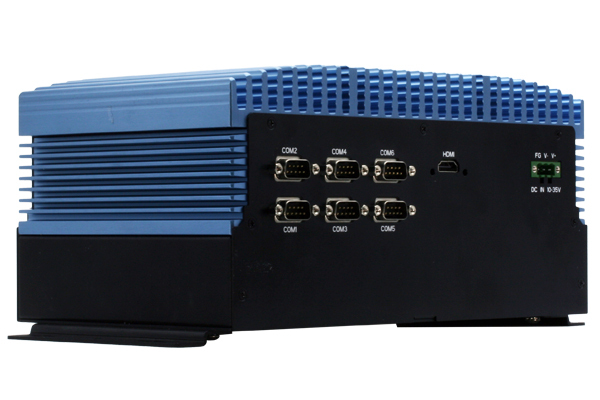

It has extensive connectivity support with 3 x GbE LAN ports, 8 x USB 3.2 Gen1, 6 x RS-232 serial ports and HDMI x 2 + VGA video output.
DC 10-35V wide voltage range, can work in the temperature range of -20°C ~ 55°C, and is compatible with Windows 10, Linux operating systems.
Features
| Product Code | BOXER-6839-CFL-A2-1010 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 2 | RAID | CFast x 1 |
| LAN/Ethernet | GbE x 3 |
| USB 3.1 | x8 |
| Video Output | HDMI x 2 + VGA x 1 |
| Digital I/O | GPIO 8Bit |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 2 | PCIe [x4] x 1 | PCIe [x4] x 1 | PCI x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 10-35V |
| Working temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 264.2 x 124.5 x 156.2 |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
