BOXER-6751-ADP-A2-1010
Brand: AAEON [An ASUS Co.]
Categories:

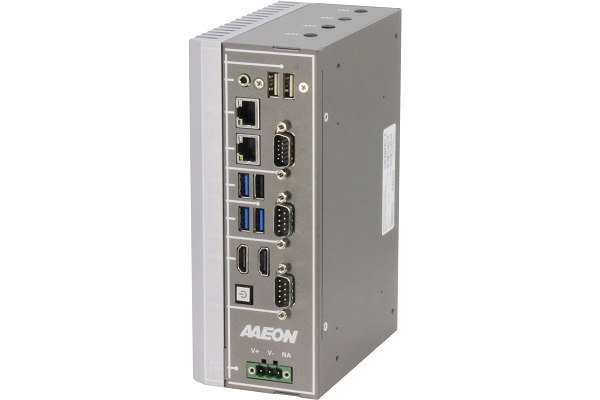

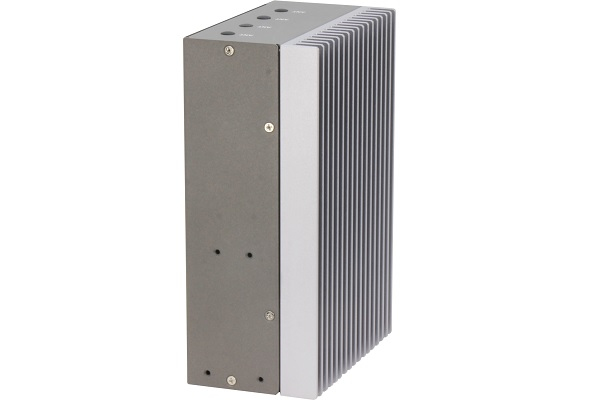

BOXER-6751-ADP-A2-1010 is a rugged Industrial Box PC designed to add value to Smart factory and offshore energy applications.
Intel® Core™ i5-1245UE provides high performance to industrial automation processes with its 10 Core 4.40 GHz processor.
DDR4 [Max 32 GB] RAM support offers expandability with M.2 M Key + 2.5" SATA3 storage options.
It has extensive connectivity options with 2.5GbE x 1 [Intel® i226LM] + GbE x 1 [Intel® i219LM] LAN ports, USB 3.2 x 3, USB 2.0 x 3, RS-232/422/485 x 2 serial ports and HDMI video output.
With DC 9-36V wide voltage input, -20°C ~ 60°C operating temperature and CE / FCC certifications, it is compatible with Windows 10, Windows 11 and Linux Ubuntu 20.04 operating systems.
Features
| Product Code | BOXER-6751-ADP-A2-1010 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i5-1245UE 10 Core 4.40 GHz | BM : 9283 |
| Processor [CPU] Family | Intel® Core™ i5 12th Gen |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | 2.5" SATA3 x 1 |
| LAN/Ethernet | 2.5GbE x 1 [Intel® i226-LM] + GbE x 1 [Intel® i219-LM] |
| USB 3.2 | x3 |
| USB 2.0 | x3 |
| RS 232/422/485 Serial Port | x2 |
| Video Output | HDMI 1.4b Type-A x 1 |
| Digital I/O | GPIO 8Bit |
| Audio Output | Line-out x 1 |
| Expansion Slot | M.2 E Key x 1 | M.2 B Key x 1 | SIM x 1 |
| Mounting Type | Din Rail | Optional |
| Supply Voltage | DC 9-36V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 74.3 x 186 x 127 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
