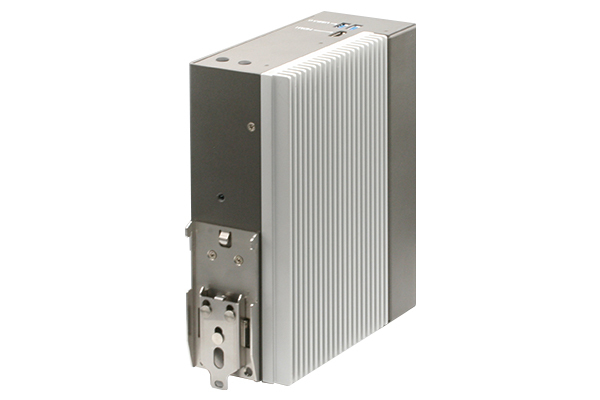

BOXER-6750-A4-1011
Brand: AAEON [An ASUS Co.]
Categories:
BOXER-6750-A4-1011 is an ideal solution for industrial automation with its powerful processing capacity and wide connection support.
It offers high performance with its Intel® Core™ i5-7300U 2 Core 2.60 GHz processor.
It offers large storage space with support for up to 16 GB DDR4 RAM, 2.5" SATA and mSATA.
It provides extensive connectivity options with 4 x USB 3.0, 2 x LAN, 4 x COM ports, HDMI x 2 + VGA video output.
It works stably in the temperature range of -20°C ~ 60°C and is compatible with Windows 10, Windows 8, Windows 7 and Linux Ubuntu 22.04 operating systems.
Features
| Product Code | BOXER-6750-A4-1011 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i5-7300U 2 Core 2.60 GHz | BM : 3700 |
| Processor [CPU] Family | Intel® Core™ i5 7th Gen |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | 2.5" SATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x4 |
| RS 232 Serial Port | x4 |
| Video Output | HDMI x 2 + VGA x 1 |
| Expansion Slot | Full Size Mini-PCIe x 2 |
| Mounting Type | Din Rail | Optional |
| Supply Voltage | DC 9-30 V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 69 x 183 x 155 |
| Body Material | Aluminum |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
