BOXER-6711-ADN-A2-1010
Brand: AAEON [An ASUS Co.]
Categories:

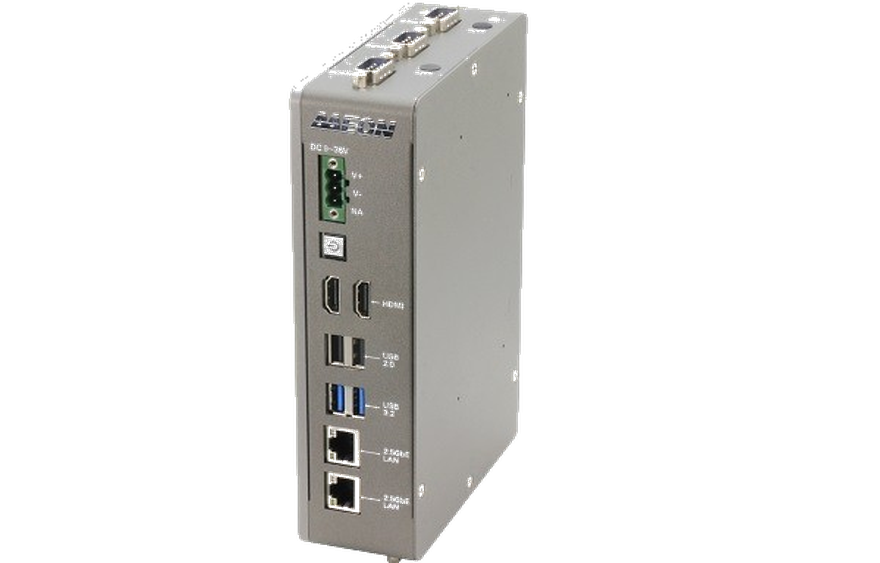

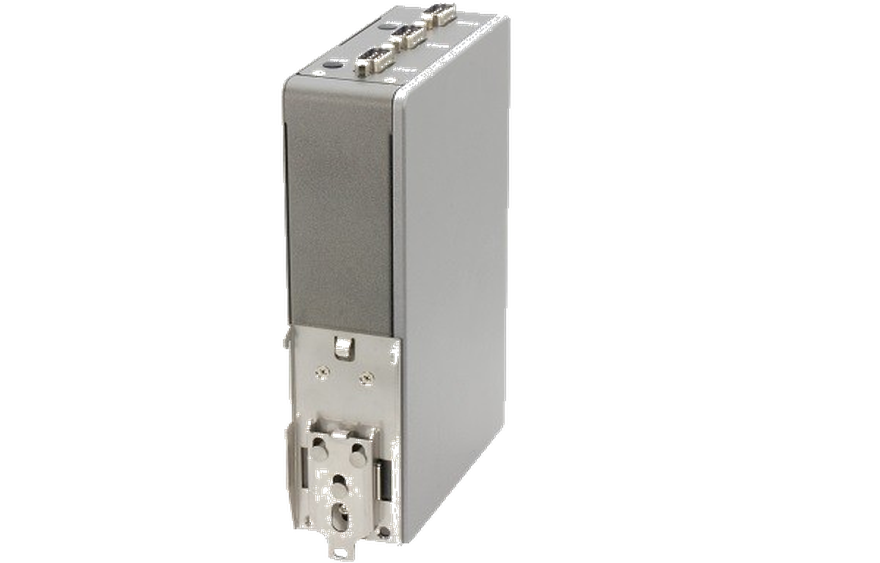

BOXER-6711-ADN-A2-1010, BOXER-6711-ADN, DIN Rail mountable industrial Box PC with Intel® N50 2 Core 1.00 / 3.40 GHz processor.
It offers high performance for automation control with its powerful processor from the Intel® Processor N® family.
DDR5 [Max 32 GB] RAM support provides expandability with M.2 2280 M Key (PCIe x2) + 2.5" SATA x 1 storage options.
Intel® i226 x 2 LAN ports, USB 3.2 x 2, USB 2.0 x 2, RS-232/422/485 x 3 serial ports and HDMI x 2 video outputs are available.
With its -20°C ~ 60°C operating temperature, DC 12V supply voltage and CE certification, it is compatible with Windows 10, Windows 11 and Linux Ubuntu 22.04 operating systems.
Features
| Product Code | BOXER-6711-ADN-A2-1010 |
| Form Factor | COM Express Type 6 |
| Card Size (mm) | 48 x 190 x 124 |
| Processor [CPU] | Intel® N50 2 Core 1.00 / 3.40 GHz | BM : 2900 |
| Processor [CPU] Family | Intel® Processor N® |
| RAM [System Memory] | DDR5 [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | M.2 2280 M Key Slot x 1 (PCIe x 2) 2.5"SATA x 1 |
| LAN/Ethernet | Intel® i226 x2 |
| USB 3.2 | x2 |
| USB 2.0 | x2 |
| RS 232/422/485 Serial Port | x3 |
| Video Output | HDMI x 2 |
| Expansion Slot | M.2 2280 M Key x 1 (PCIex2) M.2 2230 E Key x 1 Full-Size Minicard x1 (PCIe + USB) SIM Slot |
| SMBUS | x1 |
| TPM | TPM 2.0 |
| 4G - LTE | Optional |
| Supply Voltage | DC 12V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 48 x 190 x 124 |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
