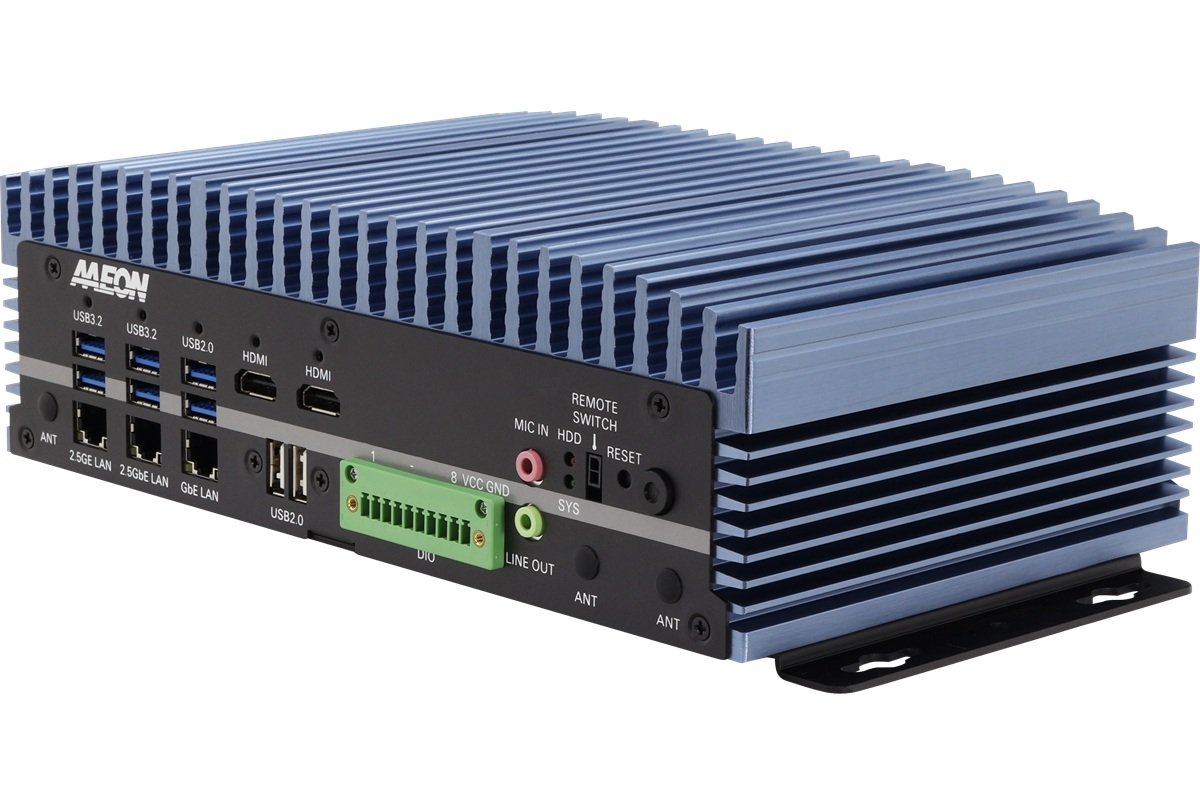

BOXER-6648-ARS-A1-1010
Brand: AAEON [An ASUS Co.]
Categories:
It offers superior power for AI and graphics/processing-intensive applications with Intel® Xe LPG Graphics and Intel® Core™ Ultra Processors (Series 2).
It has the capacity for large data processing, supporting up to 96GB of memory capacity with dual-channel DDR5 SODIMM slots.
It provides a total of three high-speed network connections with two 2.5GbE LAN and one 1GbE LAN port, making it ideal for data-intensive Edge computing applications.
Its fanless design, wide operating temperature range of −25∘C to 50∘C, and 10V∼35V DC wide voltage input make it suitable for demanding industrial conditions.
It ensures hardware-level security with a built-in TPM 2.0 chip, while the A2 SKU supports Intel iAMT technology for remote management capabilities.
Features
| Product Code | BOXER-6648-ARS-A1-1010 |
| AI Accelerator| GPU | Intel® Xe LPG |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ Ultra 9 285/285T | Intel® Core™ Ultra 7 265/265T | Intel® Core™ Ultra 5 225/225T |
| Processor [CPU] Family | Intel® Core™ Ultra 9 | Intel® Core™ Ultra 7 | Intel® Core™ Ultra 5 |
| RAM [System Memory] | DDR5 SODIMM x 2, Maks. 96GB |
| SSD/HDD/mSATA/M.2 | M.2 2280 M Key Slot x 1 (NVMe SSD)2.5"" SATA Drive Bay x 2 |
| LAN/Ethernet | GbE x 1, 2.5GbE x 2 |
| USB 3.2 | x 4 |
| USB 2.0 | x 4 |
| RS 232/422/485 Serial Port | x 6 |
| Video Output | HDMI x 2 |
| Expansion Slot | M.2 2230 E-Key x 1 (PCIe)M.2 2280 M-Key x 1 (PCIe Gen 4 [x4]) |
| Mounting Type | Wallmount |
| Supply Voltage | DC 10V-35V |
| Working temperature | -40˚C ~ 80˚C |
| External Dimensions (mm) | 10.39 x 3.2 x 6.1 |
| Weight (kg) | 3,9 |
| Certificates | CE | FCC Class A |
| Supported Operating Systems | Windows® 11 IoT Enterprise | Windows® 11 PRO | Linux Ubuntu 22.04 | Operating system license is sold separately. |
