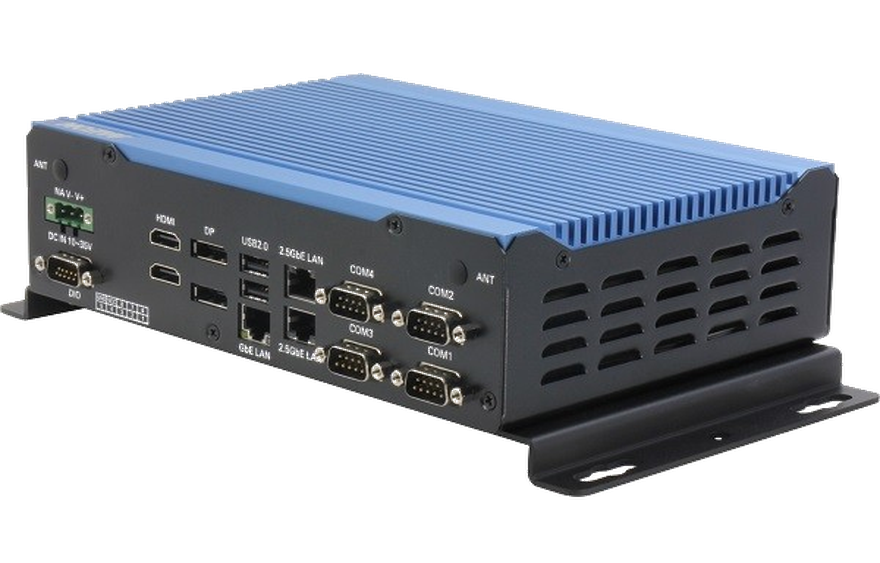

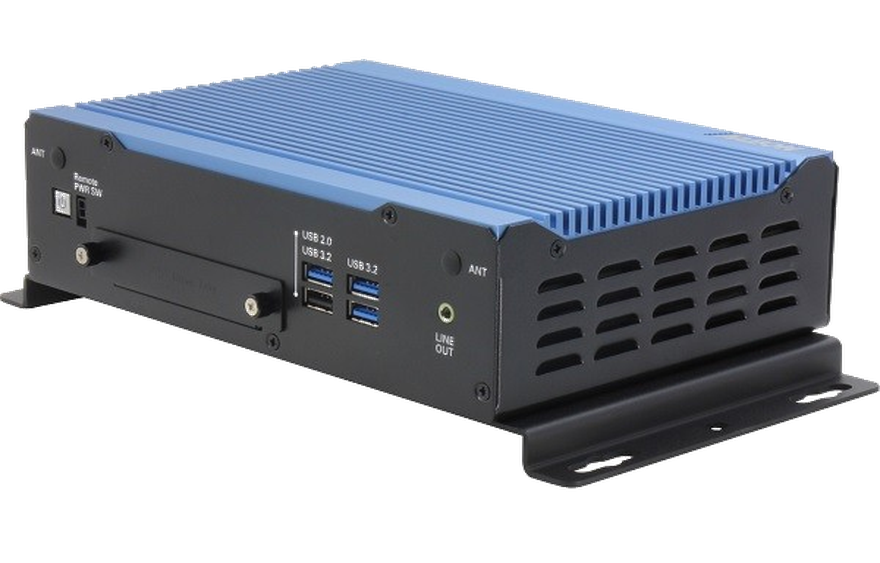

BOXER-6646-ADP-A1-1010
Brand: AAEON [An ASUS Co.]
Categories:
It is a high-performance industrial PC optimized for AI, automation and IoT projects with its compact and powerful structure.
It offers energy efficiency and superior processing power with the Intel® Core™ i3 12th Generation processor.
It offers extensive connectivity options with 3 Gigabit LAN connections, USB 3.2 and serial ports.
It is suitable for industrial use with its durable aluminum body and wide voltage range.
It is suitable for visual processing applications by providing 4K resolution image output with dual HDMI and dual DisplayPort support.
Features
| Product Code | BOXER-6646-ADP-A1-1010 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Core™ i3-1220PE 8 Core 3.10 GHz | BM : 16200 |
| Processor [CPU] Family | Intel® Core™ i3 12th Gen |
| RAM [System Memory] | DDR5 x 2 |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | 2.5" SATA3 x 1 |
| LAN/Ethernet | GbE x 3 |
| USB 3.2 | x3 |
| USB 2.0 | x3 |
| RS 232/422/485 Serial Port | x4 |
| Video Output | HDMI x 2 + DP x 2 |
| Audio Output | Line-out x 1 |
| Expansion Slot | M.2 E Key x 1 | M.2 B Key x 1 | SIM x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 10-35V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 220 x 154 x 61.6 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
