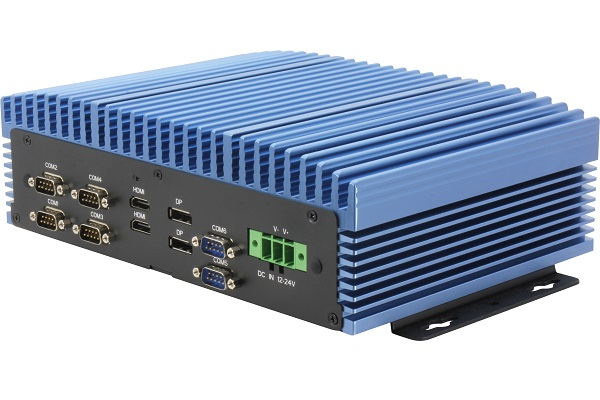

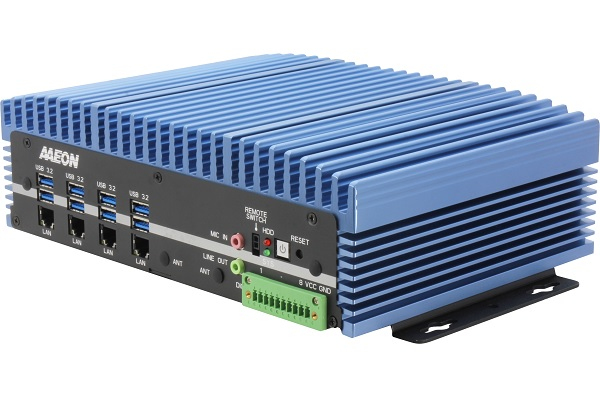

BOXER-6645-ADS-A2-1010
Brand: AAEON [An ASUS Co.]
Categories:
It is a high-performance industrial system compatible with 12th, 13th and 14th Generation Intel® Core™ processors with LGA 1700 socket.
It has the durability to withstand harsh industrial environments thanks to its ability to operate in the temperature range of -25°C to 70°C.
It is ideal for digital signage and automation systems, providing high-quality images in 4K resolution with its dual HDMI output.
It offers flexible connectivity options thanks to two GbE LAN ports and 6 USB ports.
TPM 2.0 provides advanced data protection with hardware security, delivering reliability for critical industrial applications.
Features
| Product Code | BOXER-6645-ADS-A2-1010 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | DDR5 x 2 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | 2.5" SATA3 x 2 |
| LAN/Ethernet | GbE x 4 |
| USB 3.2 | x3 |
| Video Output | HDMI x 2 + DP x 2 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | M.2 E Key x 1 | M.2 B Key x 1 | SIM x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12-24V |
| Working temperature | -40°C ~ 80°C |
| External Dimensions (mm) | 264 x 80.92 x 186.2 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
