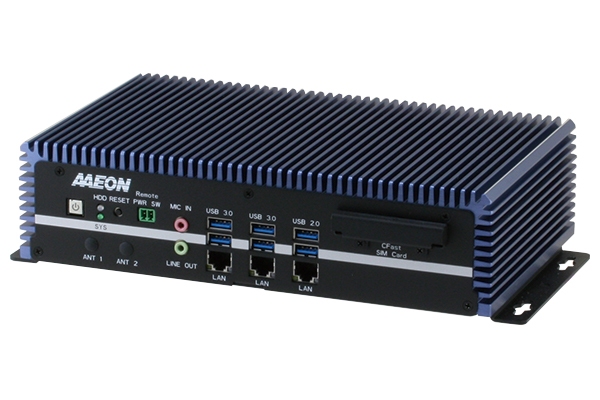

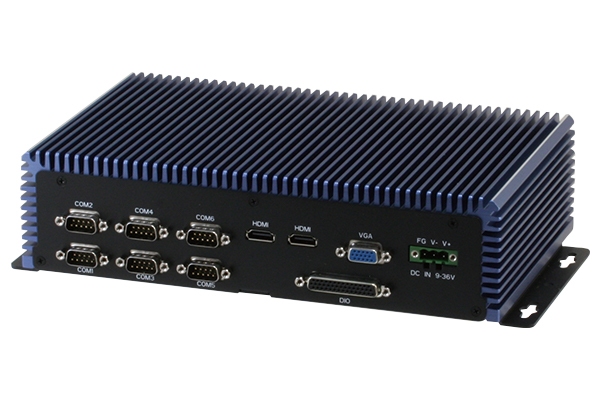

BOXER-6639-A4-1010
Brand: AAEON [An ASUS Co.]
Categories: Machine Vision Box PC
Optimized for machine vision and intelligent control systems, this industrial Box PC offers long-lasting use.
Equipped with 6th Generation Intel® Core™ processors, the system offers high performance and low power consumption.
It is suitable for smart control systems with HDMI and industrial Ethernet ports supporting 4K resolution.
It is resistant to operating temperatures between -20°C and 55°C and operates silently even in harsh conditions with its fanless design.
It offers extensive connectivity options with USB 3.2, VGA and I/O connectors.
Features
| Product Code | BOXER-6639-A4-1010 |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | 2.5" SATA x 2 | RAID | CFast x 1 |
| LAN/Ethernet | GbE x 3 |
| USB 3.2 | x6 |
| USB 2.0 | x2 |
| RS 232 Serial Port | x6 |
| Digital I/O | GPIO 34Bit |
| Video Output | HDMI x 2 + VGA x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 2 |
| Wireless | 2 x Antenna holes |
| Mounting Type | wall mount |
| Supply Voltage | DC 9-36V |
| Working temperature | -20°C ~ 55°C |
| External Dimensions (mm) | 264.2 x 66.5 x 156.2 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
