BOXER-6615-A2-1110
Brand: AAEON [An ASUS Co.]
Categories:

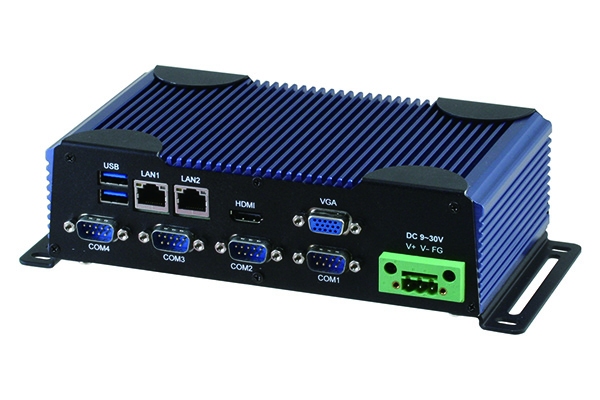

BOXER-6615-A2-1110, BOXER-6615, fanless industrial Box PC with Intel® Pentium® N3710 4 Core 1.60 GHz processor.
Provides support for 2.5" SATA and mSATA storage.
It provides wide usage opportunity with USB 3.0 x 2, USB 2.0 x 2, VGA x 1, RS232 x 6 connection options and GPIO 8Bit support.
It can operate in the operating temperature range of -20°C ~ 60°C and has a durable aluminum body.
It has CE and FCC certifications and supports Windows 10, Windows 8, Windows 7 and Linux Ubuntu 22.04 operating systems.
Features
| Product Code | BOXER-6615-A2-1110 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Pentium® N3710 4 Core 1.60 GHz | BM : 1380 |
| Processor [CPU] Family | Intel® Pentium® |
| RAM [System Memory] | [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | 2.5" SATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x2 |
| USB 2.0 | x2 |
| RS 232 Serial Port | x6 |
| Video Output | VGA x 1 |
| Digital I/O | GPIO 8Bit |
| Audio Output | Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | Half Size Mini-PCIe x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 9-30 V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 197 x 55 x 110 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
