BOXER-6451-ADP-A2-1010
Brand: AAEON [An ASUS Co.]
Categories: Automation Box PC

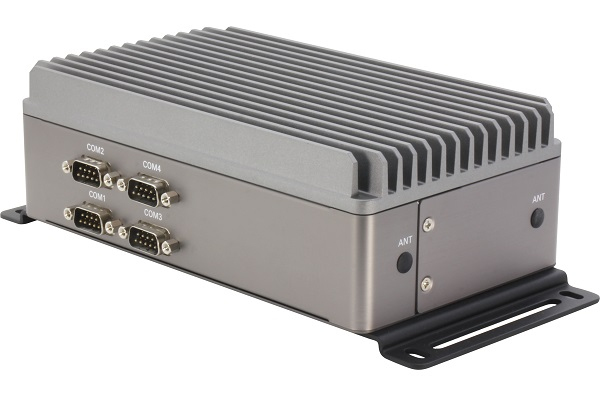

BOXER-6451-ADP-A2-1010, BOXER-6451 is a compact and fanless integrated PC compatible with 12th Generation Intel® Core™ / Celeron® processors.
It provides high performance and flexible memory capacity with DDR4 SODIMM (Max. 32GB).
It provides enhanced data transfer speed with USB 3.2 Gen2 x 3 (10 Gbps) and USB 2.0 x 2 connection options.
It is suitable for harsh industrial conditions with an operating temperature range of -20°C ~ 60°C.
It supports Windows 10, Windows 11 and Linux Ubuntu 22.05 operating systems and has CE and FCC certifications.
Features
| Product Code | BOXER-6451-ADP-A2-1010 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Core™ i5-1245UE 10 Core 4.40 GHz | BM : 9283 |
| Processor [CPU] Family | Intel® Core™ i5 12th Gen |
| RAM [System Memory] | DDR4 [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | 2.5" SATA3 x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x3 |
| USB 2.0 | x1 |
| RS 232/422/485 Serial Port | x4 |
| Video Output | HDMI 1.4b x 3 |
| Expansion Slot | M.2 E Key x 1 | M.2 B Key SIM x 1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 12V |
| Working temperature | -20°C ~ 60°C |
| External Dimensions (mm) | 195 x 111 x 63.5 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
