BOXER-6405M-A2-1011
Brand: AAEON [An ASUS Co.]
Categories: Automation Box PC

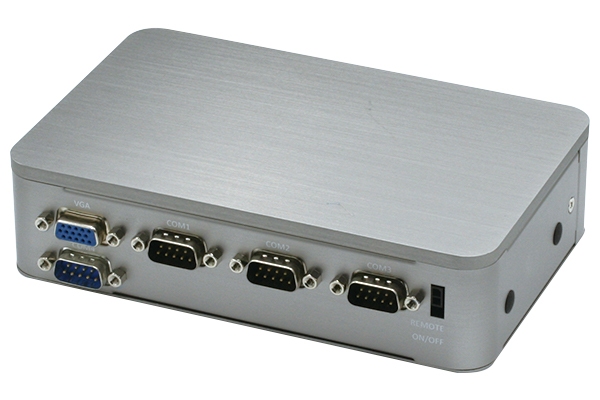

BOXER-6405M-A2-1011, BOXER-6405M is an embedded box computer optimized for industrial applications.
Intel® Pentium® N4200 quad-core processor runs at 1.10 GHz and provides speeds up to 2.40 GHz.
It comes with 4GB DDR3L RAM and is expandable up to 8GB. It has Mini-PCIe expansion slots.
It offers mSATA and 2.5" SATA storage options and provides extensive connectivity support with HDMI, VGA and GbE x 2 connections.
It is compatible with Windows 10 and Linux operating systems and is CE and FCC certified.
Features
| Product Code | BOXER-6405M-A2-1011 |
| Cooling | Fanless |
| Processor [CPU] | Intel® Pentium® N4200 4 Core 1.10 / 2.40 GHz | BM : 2150 |
| Processor [CPU] Family | Intel® Pentium® |
| RAM [System Memory] | Standard 4 GB DDR3L [Max 8 GB] |
| SSD/HDD/mSATA/M.2 | mSATA x 1 | 2.5" SATA x 1 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x4 |
| RS 232 Serial Port | x4 |
| Video Output | HDMI x 1 + VGA x 1 |
| Audio Output | Mic-in x 1 + Line-out x 1 |
| Expansion Slot | Full Size Mini-PCIe x 1 | Half Size Mini-PCIe x 1 |
| Mounting Type | Wallmount | Din Rail | Optional |
| Supply Voltage | DC 9-19V |
| Working temperature | -30°C ~ 60°C |
| External Dimensions (mm) | 167 x 107 x 42 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
