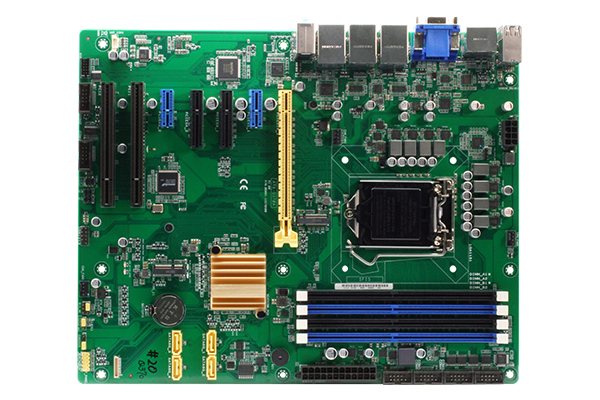

ATX-Q370A-A20-2L-210
Brand: AAEON [An ASUS Co.]
Categories:
The ATX-Q370A-A20-2L-210 is AAEON's industrial motherboard model that supports Intel® Core™ i7, i5, i3, Pentium®, and Celeron® processors. This motherboard has an ATX form factor, measuring 304 x 244 mm, and is designed for high-performance applications.
It has up to 32GB of RAM with DDR4 memory support. It also offers rich storage options with four SATA3 ports and an M.2 M Key slot. Dual GbE Ethernet ports provide reliable network connectivity.
The motherboard offers multi-display support with HDMI, VGA, and dual DP ports. It also enables extensive peripheral integration with five RS-232 serial ports and various USB ports (6x USB 3.0, 4x USB 2.0).
The ATX-Q370A provides expansion via PCIe [x16], [x4] and [x1] slots, allowing for flexible system expansion. The fan cooling system supports long-term stable performance.
Supporting Windows 10, Windows 8, Windows 7 and Linux Ubuntu 22.04 operating systems, the ATX-Q370A-A20-2L-210 is a durable and reliable platform for industrial projects.
Features
| Product Code | ATX-Q370A-A20-2L-210 |
| Form Factor | ATX |
| Card Size (mm) | 304 x 244 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | [Max 32 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 4 |
| LAN/Ethernet | GbE x 2 |
| USB 3.0 | x6 |
| USB 2.0 | x4 |
| RS 232 Serial Port | x5 |
| Video Output | HDMI x 1 + VGA x 1 + DP x 2 |
| Expansion Slot | M.2 B Key x 1 | M.2 E Key x 1 | PCIe [x16] x 1 | PCIe [ 4] x 2 | PCIe [x1] x |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included. |
