ATX-H310A-A11-210
Brand: AAEON [An ASUS Co.]
Categories:

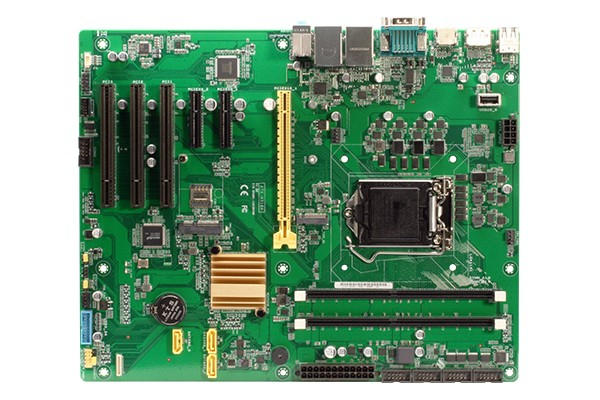

The ATX-H310A-A11-210 is an ATX industrial motherboard from AAEON supporting 8th and 9th Generation Intel® Core™ LGA1151 processors. It is designed for high-performance applications with support for 6-core processors with a maximum TDP of 95W.
This motherboard supports DDR4 memory technology and supports a maximum memory capacity of 64GB at speeds of 2666/2400/2133MHz. It also provides rich storage options with three SATA3 ports and an M.2 M Key slot.

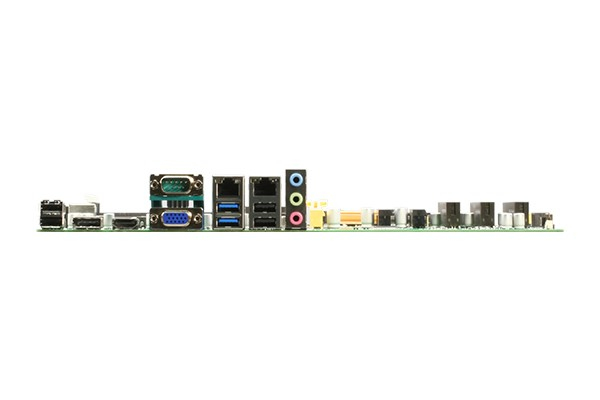

The ATX-H310A supports three video outputs: HDMI, VGA, and DP. Five RS-232 serial ports and two GbE Ethernet ports provide extensive peripheral integration and reliable network connections.
It provides various expansion options with PCIe [x16] and [x4] expansion slots. The fan cooling system ensures stable and long-lasting performance.
Supporting Windows 10, Windows 11 and Linux Ubuntu 18.04 operating systems, the ATX-H310A-A11-210 is a perfect solution for industrial applications with its flexible design and powerful hardware features.
Features
| Product Code | ATX-H310A-A11-210 |
| Form Factor | ATX |
| Card Size (mm) | 304 x 244 |
| Cooling | Fan |
| Processor [CPU] | Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| Processor [CPU] Family | Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron® |
| RAM [System Memory] | DDR4 [Max 64 GB] |
| SSD/HDD/mSATA/M.2 | M.2 M Key x 1 | SATA3 x 3 |
| LAN/Ethernet | GbE x 2 |
| USB 3.2 | x3 |
| USB 2.0 | x5 |
| RS 232 Serial Port | x5 |
| Video Output | HDMI x 1 + VGA x 1 + DP x 1 |
| Expansion Slot | M.2 M Key x 1 | PCIe [x16] x 1 | PCIe [x4] x 2 | PCIe [x16] x 1 | PCIe [x4]x |
| TPM | TPM 2.0 |
| Supply Voltage | ATX |
| Working temperature | 0°C ~ 60°C |
| Certificates | CE |
| Supported Operating Systems | Windows®10 | Windows®11 | Linux | Operating system license sold separately. |
