ATX-C246A-A20-2L-210

ATX-C246A-A20-2L-210

Brand: AAEON [An ASUS Co.]
Categories:

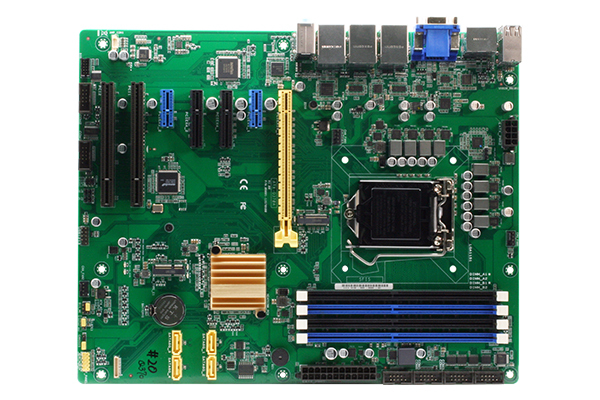

The ATX-C246A-A20-2L-210 is AAEON's industrial motherboard model that supports Intel® Core™ i7, i5, i3, Pentium®, and Celeron® processors. This motherboard has an ATX form factor, measuring 304 x 244 mm, and is designed for high-performance industrial applications.

This model offers rich storage options with four SATA3 ports and an M.2 M Key slot. It also provides extensive peripheral connectivity with six USB 3.0 and four USB 2.0 ports. Dual GbE Ethernet ports are ideal for reliable network connections.

The ATX-C246A provides multi-display support by offering three video outputs: HDMI, VGA, and DP. Additionally, five RS-232 serial ports provide flexibility and compatibility in industrial applications. PCIe expansion slots increase system expandability.

With DDR4 memory support and a maximum RAM capacity of 32GB, this motherboard is suitable for intensive data processing applications. Its fan cooling system ensures a stable operating environment.

Supporting Windows 10, Windows 8, Windows 7 and Linux Ubuntu 22.04 operating systems, the ATX-C246A-A20-2L-210 is a reliable platform for industrial projects with its flexible design and wide connectivity features.

Features


Product Code ATX-C246A-A20-2L-210
Form Factor ATX
Card Size (mm) 304 x 244
Cooling Fan
Processor [CPU] Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron®
Processor [CPU] Family Configurable Intel® Xeon® |Core™ i7 | i5 | i3 | Pentium® | Celeron®
RAM [System Memory] [Max 32 GB]
SSD/HDD/mSATA/M.2 M.2 M Key x 1 | SATA3 x 4
LAN/Ethernet GbE x 2
USB 3.0 x6
USB 2.0 x4
RS 232 Serial Port x5
Video Output HDMI x 1 + VGA x 1 + DP x 1
Expansion Slot M.2 B Key x 1 | M.2 E Key x 1 | PCIe [x16] x 1 | PCIe [ 4] x 2 | PCIe [x1] x
Supply Voltage ATX
Working temperature 0°C ~ 60°C
Certificates CE
Supported Operating Systems Windows®10 | Windows®8 | Windows®7 | Linux Ubuntu 22.04 | Operating system license is not included.
