AIOT-IP6801-A11-AP40432W
Brand: AAEON [An ASUS Co.]
Categories:

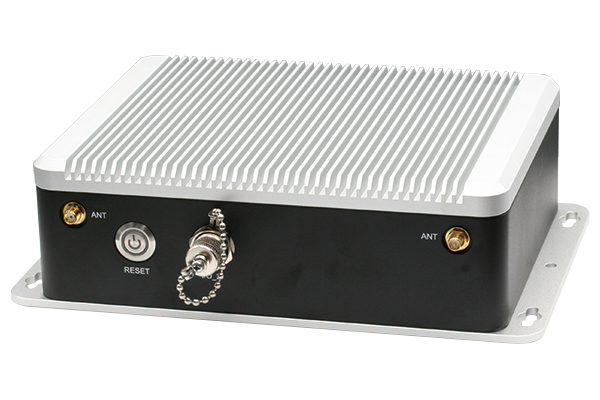

AAEON's AIOT-IP6801-A11-AP40432W is a next-generation IoT gateway that provides full protection against dust and water. Equipped with an Intel® Atom™ x5-E3940 quad-core processor, it delivers stable performance even in harsh temperature conditions ranging from -20°C to 70°C.

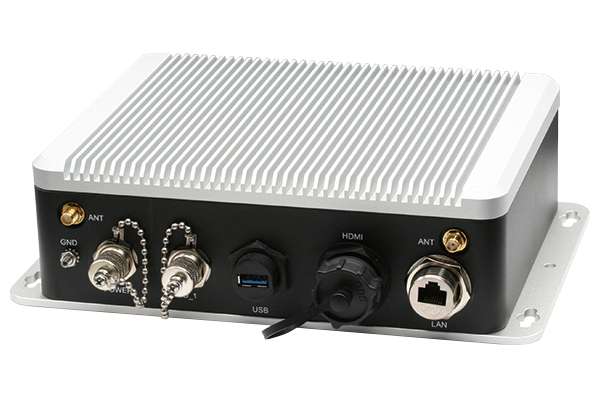

The device features 4GB LPDDR4 RAM and 32GB eMMC storage. Rich I/O interfaces, including HDMI, GbE Ethernet, USB 3.0, and RS-232 ports, enable easy integration with various devices. Bluetooth 4.0 and 802.11ac WiFi connections also provide flexible wireless communication.
AIOT-IP6801 can be expanded with optional 3G/4G LTE, LoRa and IQRF kits. Its ability to maintain communication links even at high temperatures makes it a reliable solution for industrial and outdoor applications.
The device's compact dimensions and waterproof AAEON M12 connectors ensure ease of use in harsh environmental conditions. The wall-mounting option adapts to different operational scenarios.
With its durable aluminum housing and flexible connection options, AIOT-IP6801-A11-AP40432W is an ideal solution for smart cities, outdoor applications and IoT projects.
Features
| Product Code | AIOT-IP6801-A11-AP40432W |
| Cooling | Without Fan |
| Processor [CPU] | Intel® Atom™ x5-E3940 4 Core 1.60 GHz BM : 1970 |
| Processor [CPU] Family | Intel® Atom® |
| RAM [System Memory] | 4 GB Onboard |
| SSD/HDD/mSATA/M.2 | 32 GB eMMC |
| LAN/Ethernet | GbE x 1 |
| USB 3.0 | x1 |
| RS 232 Serial Port | x2 |
| Video Output | HDMI x 1 |
| Wireless | 802.11 |
| Bluetooth | BT4.1 |
| Mounting Type | wall mount |
| Supply Voltage | DC 5V |
| Working temperature | -20°C ~ 70°C |
| External Dimensions (mm) | 239.40 x 159.40 x 69.40 |
| Body Material | Aluminum |
| Certificates | CE | FCC |
| Supported Operating Systems | Windows®10 | Linux | Operating system sold separately from license. |
