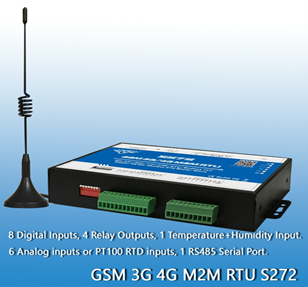

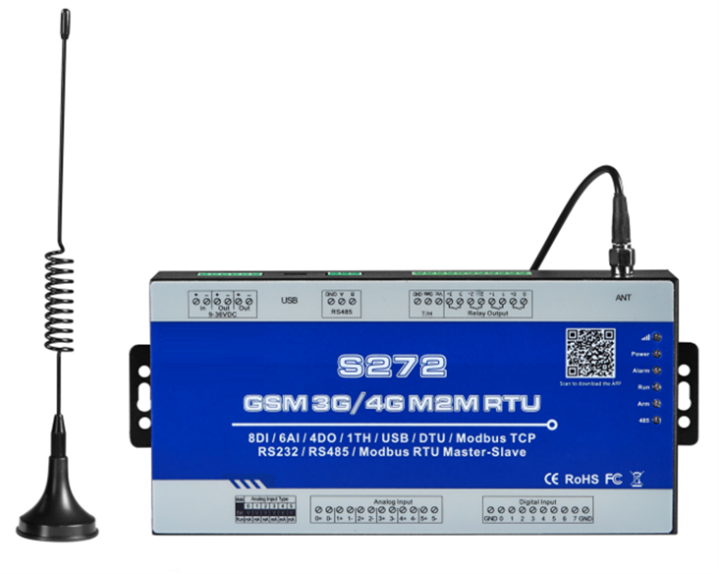

IPC4-GW-KPS272 Cellular M2M IOT RTU

IPC4-GW-KPS272 Cellular M2M IOT RTU
8xDI,6xAI, PT100, 4x Relay Output,1TH, USB, RS485


The GSM GPRS 3G 4G Cellular M2M IoT RTU is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system, BTS monitoring, rem

The GSM GPRS 3G 4G Cellular M2M IoT RTU is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit (RTU). It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module. It provides 8 digital inputs, 6 analog or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 ambient sensor input for monitoring onsite temperature and humidity, and RS485 serial port. It can monitoring and operates the I/O ports by SMS, APP, Web Server, internet, timers and programmed inter-lock events automatically.

The GSM GPRS 3G 4G Cellular M2M IoT RTU inbuilt TCP/IP protocol stack make it suitable for internet of things (IoT) applications, it can be easily to operate by the provided cloud, app, and web server, or integrated to you IoT applications according to the TCP/UDP protocol, or integrated to SCADA systems by standard Modbus TCP protocol, too. This is very useful if you need remote control onsite devices with low cost solution.

The GSM GPRS 3G 4G Cellular M2M IoT RTU is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system, BTS monitoring, remote data acquisition, telemetrically systems, automatically control system. It can be used as a remote switch, remote I/O, remote smart PLC, timer switches.

The GSM GPRS 3G 4G Cellular M2M IoT RTU can be used as remote access control for BTS monitoring, the authorized users can open the gate or turn on the machine with a free charge call at specified time, this is useful for daily maintenance to save the time of traditional authorized.

The GSM GPRS 3G 4G Cellular M2M IoT RTU supports transparent data transmission and performs as Modbus Slave over GPRS/3G/4G network and RS485 serial port.


IoT Gateway2

Features


• Can be operated from anywhere, no distance limitation;
• Quad band 850/900/1800/1900MHz GSM GPRS Module inside.
• 3G/4G/NB-IoT Modules are optional;
• Modular design, can easily upgrade the cellular module if network upgrade;
• Embedded ARM® Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system, reliable performance with in-built watchdog;
• Wide range power supply 9~36VDC with over voltage and phase-reversal protection;
• 8 digital inputs, compatibles dry and wet contact, one of it can be used as pulse counter;
• 6 analog inputs, 12bit resolution, compatibles 0/4~20mA, 0~5V, can change to PT100 Resistance Temperature Detectors;
• 4 relay output (5A/30VDC, 5A/250VAC), compatibles pulse outputs;
• 1 ambient sensor input for monitoring onsite temperature and humidity;
• Inbuilt inter-lock logic programmer and powerful timer program function;
• Resend the data while communication failure and alert to users by SMS;
• Inbuilt TCP/IP protocol stack, supports cloud, APP and web server applications.



Item

Parameters

DC Power supply

Standard adapter: DC 12V/1.5A Range 9-36VDC

Power consumption

Standby:12V/70mA; Working Max.: 12V/300mA

GSM Frequency

850/900/1800/1900Mhz

3G/4G/NB-Iot

Optional: WCDMA/TDD-LTE/FDD-LTE/NB-IoT

TCP/IP stack

TCP,UDP

SIM interface

Supporting 3V SIM Card

External antenna

SMA Antenna interface, 50 Ohm, Gain: 3dB

Serial Interfaces

1 USB Port

Protocols

SMS, GPRS UDP,TCP, Modbus RTU, Modbus TCP and more equipment protocols can be added according to requirements.

RS485

1 RS485, Support Transparent transmission and Modbus RTU Slave

Digital Inputs

8 Digital input, NC/NO type, one of it can be used as Pulse Counters;

Analog Inputs

6 Analog Inputs. 12 bit resolution, 0-5V or 0-20mA or 4-20mA;



Optional: each AIN can change to PT100 RTD inputs.

Temp.&Hum Inputs

Temperature range: -40°C to +80°C, Humidity Range: 0~100%RH;

Relay Outputs

4, Rated: 5A/30VDC,5A/250VAC

Power Outputs

1 Port, for external device;

Memory Capacity

Internal 8G SD card inside, can save the data for 100000events.

Backup Battery

3.7V 1200mAH

Temperature range

-10-+70 °C

Humidity range

Relative humidity 95% (condensation free)

Exterior dimension

175mm*88mm*30mm

Net Weight

950g
