IPC4-GW-KPBL110 MULTI-PROTOKOL IIOT GATEWAY
IPC4-GW-KPBL110 MULTI-PROTOKOL IIOT GATEWAY

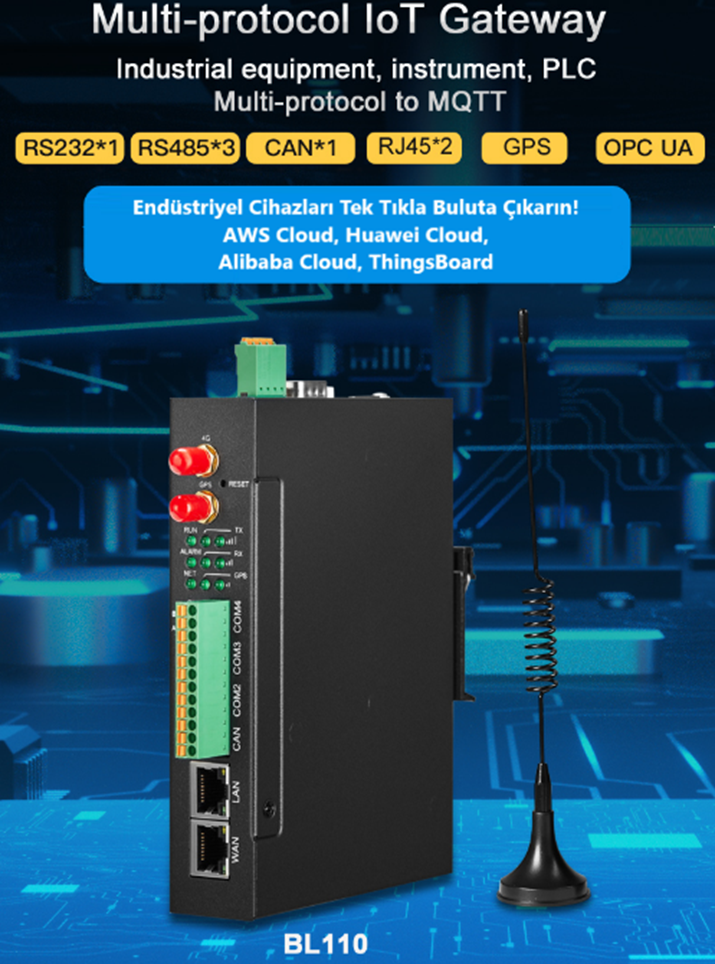

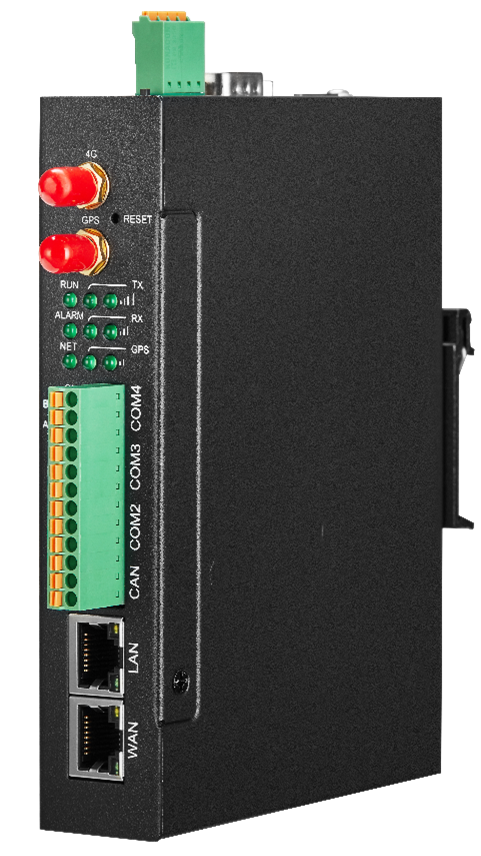

Multiple-Protocol IIOT Gateway IPC4-GW-KPBL110 is a user-friendly device with various interfaces. It has 1x power input, 1x power output, 1x WAN, 1x LAN, 1x RS232, 3x RS485, 1x CAN, 1x SIM Slot and 2x USB ports. It supports Modbus, MQTT, BACNet and many PLC protocols. Built-in GPS
Multiple-Protocol IIOT Gateway IPC4-GW-KPBL110 is a robust device compatible with many industrial protocols, like Modbus, MQTT, OPC UA, DTL645, IEC104,
BACnet and PLC (Mitsubishi, Siemens, Allen-Bradley, Omron, Schneider, etc) protocols.
Total 100 devices with 4000 datapoints can be connected to this gateway,
50 Modbus RTU devices through serial port and 50 Modbus TCP devices through Ethernet port.
Users can schedule task, receive alarm and remote control devices with timer and linking action.

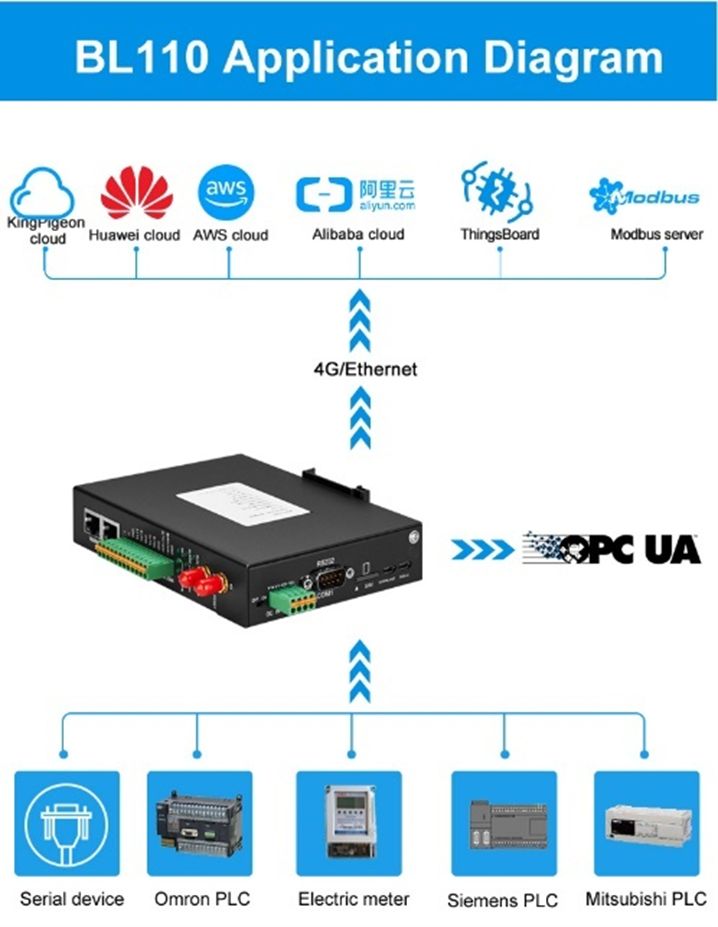

It can be connected to Alibaba Cloud, AWS Cloud, HUAWEİ Cloud, ThingsBoard Cloud, King Pigeon Cloud, SCADA, OPC UA, MES and self-built servers with standard Modbus MQTT protocols.
Data will be saved in cache if network is lost and re-transmitted via MQTT once internet resumes.
Features
• Built-in GPS is used for device positioning. Harddware watchdog and TSL/SSL encryption ensure device reliability and data transfer security.
• Using 4G wireless network and Ethernet redundant data upload method, stable and reliable;
• Embedded ARM9 32-bit Linux kernel real-time operating system and watchdog function;
• Wide working voltage design with anti-reverse protection design;
• Supports Mitsubishi, Siemens, Delta, Schneider, ABB, Huichuan, Omron, Panasonic, Hollysys and other PLC protocols;
• 4 serial ports support modbus master-slave protocol, support modbus/mqtt/private custom protocol upload;
• All 4 serial ports support transparent transmission, and the CAN port supports data of CAN communication equipment, such as server;
• It can collect the data of the network port PLC or other network port equipment through the Ethernet interface;
• Support OPC client function, can read data provided by OPC server of other manufacturers;
• Support multiple data storage functions according to cycle, change, condition, etc .;
• Support multi-level data security rights management function;
• Support multiple alarm conditions, such as alarm conditions, urgency, confirmation rules, push rules, and SMS push;
• Support power failure alarm function; (optional)
• Support remote PLC download programming and remote collection of PLC equipment, set conditions to stop PLC operation;
• Support routing function and access video surveillance camera;
• Support mainstream public cloud platforms such as Alibaba Cloud and Amazon Cloud;
• Support third-party manufacturers custom development, provide hardware and SDK interface
• Embedded TCP/IP protocol stack, support TCP, UDP protocol, TCP Server and TCP Client services;
• Using metal case, protection grade IP30. The metal case is safely isolated from the system, which is especially suitable for industrial control field applications;
• Small size, L110 * W88 * H30mm, support wall installation and DIN35mm industrial rail installation.
|
Category |
Item |
Description |
|
System |
Processor |
ARM9, clock speed 300Mhz |
|
Storage |
1xbe extended to 1G) |
|
|
Flash Memory |
64MB |
|
|
Power Supply |
Input Voltage |
DC 9～36V |
|
Power Consumption |
Normal: 1xMax: 168mA@12V。 |
|
|
Wiring |
Support reverse wiring prevention protection |
|
|
Ethernet Port |
Specifications |
2 x RJ45, 1xadaptive MDI/MDIX |
|
Protection |
ESD ±1x(contact), ±1x(air); |
|
|
EFT 40A (5/50ns); |
||
|
Thunder strike 6A (8/20µs) |
||
|
Serial Port |
Quantity |
3x RS485/(optional RS232)+1xRS232 |
|
Baud Rate |
2400bps-115200bps |
|
|
Data Bit |
7,8 |
|
|
Parity Bit |
None, Even, Odd |
|
|
Stop Bit |
1x2 |
|
|
Protection |
ESD ±8kV (contact), ±1x(air); |
|
|
EFT 2KV, 40A (5/50ns) |
||
|
SIM Card Slot |
Quantity |
1 |
|
Specifications |
Drawer type, support 1xSIM/UIM card(NANO) |
|
|
Protection |
Built-in 1xESD protection |
|
|
USB Port |
Quantity |
1xUpgrading+1xDebugging |
|
Specifications |
Micro USB OTG |
|
|
Protection |
Over-Current Protection |
|
|
4G (Optional) |
Antenna Quantity |
1 |
|
Antenna Type |
SMA Hole |
|
|
L-CE Version |
GSM/EDGE:900,1800MHz |
|
|
WCDMA:B1,B8 |
||
|
TD-SCDMA:B34,B39 |
||
|
FDD-LTE:B1,B3,B8 |
||
|
TDD-LTE:B38,B39,B40,B41 |
||
|
GPS (Optional) |
Antenna Quantity |
1 |
|
Antenna Type |
SMA Hole |
|
|
Tracking Sensitivity |
> -1xdBm |
|
|
Flat Position Precision |
2.5m |
|
|
Protocol |
NMEA-01xV2.3 |
|
|
Software |
Internet Protocol |
IPV4, TCP/UDP, DHCP, DNS, etc |
|
IP Retrieving |
Static IP/DHCP |
|
|
Data Service |
Support transparent transmission |
|
|
DNS |
Support Domain Name resolution |
|
|
Configuration |
PC software configuration, support WIN XP, WIN 7, WIN 8 & WIN 10 |
|
|
Network Cache |
Transmitting: 8Kbyte; Receiving: 8Kbyte |
|
|
Login Package |
Support custom login package |
|
|
Heartbeat Package |
Support custom heartbeat package |
|
|
Safety |
MTBF |
≥1xhours |
|
EMC |
EN 55022: 2006/A1x2007 (CE &RE) Class B |
|
|
IEC 61x(ESD) Level 4 |
||
|
IEC 61x(RS) Level 4 |
||
|
IEC 61x(EFT) Level 4 |
||
|
IEC 61x(Surge)Level 3 |
||
|
IEC 61x(CS)Level 4 |
||
|
IEC 61x(M/S) Level 4 |
||
|
Others |
CE, FCC |
|
|
Environment |
Working |
-40～80℃，5～95% RH |
|
Storage |
-40～85℃，5～95% RH |
|
|
Others |
Case Material |
Metal Case |
|
Size |
109mm×31mm×145mm(L*W*H) |
|
|
Protection Grade |
IP30 |
|
|
Net Weight |
470g |
|
|
Mounting |
Wall-mounting/DIN Rail Mounting |
