IPC4-GW-KPBL101 MODBUS GATEWAY
IPC4-GW-KPBL101 MODBUS GATEWAY
MODBUS -> MQTT, OPC UA

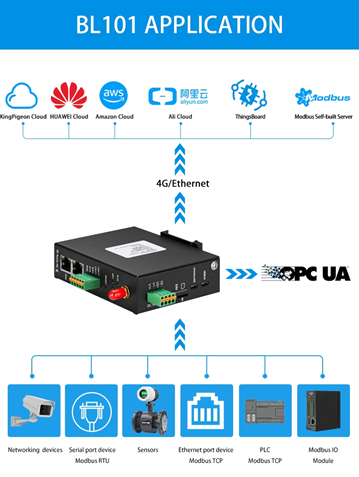

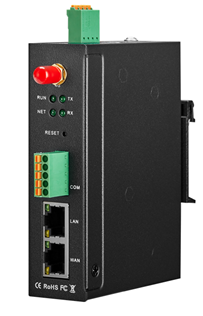

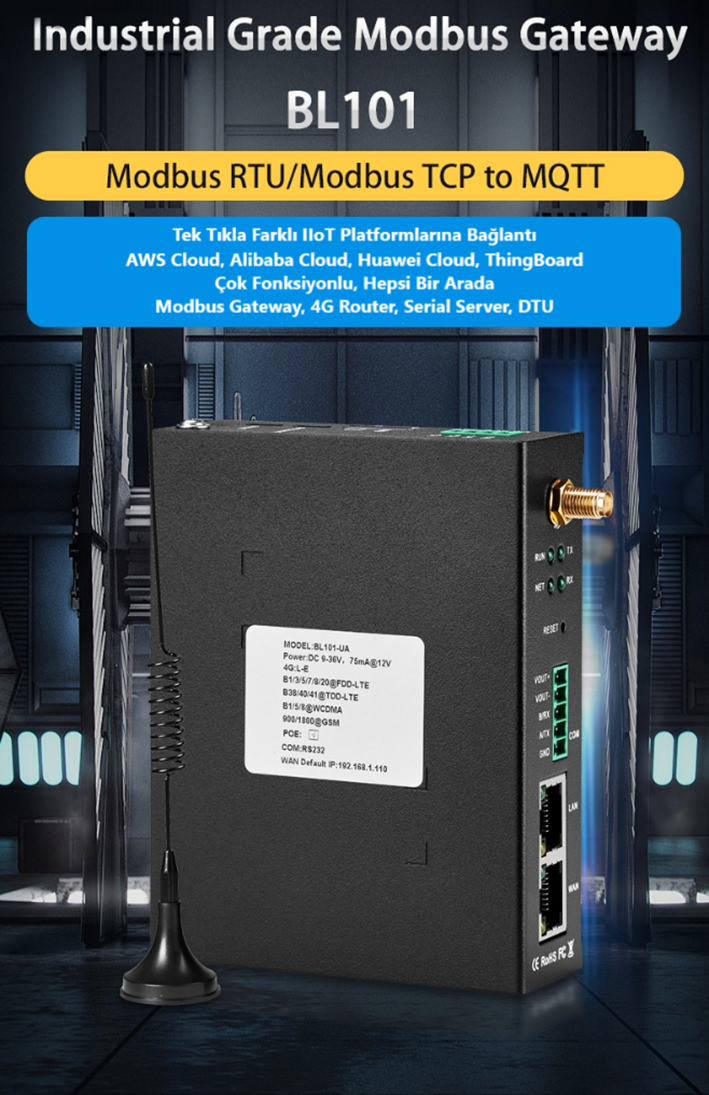

Modbus Gateway IPC4-GW-KPBL101 is an industrial IoT gateway that converts Modbus RTU and Modbus TCP into Modbus TCP, OPC UA, MQTT, Huawei Cloud IoT, AWS, Aliyun, KPIIOT Cloud and other protocols.
Modbus Gateway IPC4-GW-KPBL101 adopts embedded Linux system, supports TSL, SSL encryption, provides 1x RS232/RS485 optional serial input, 1 power output, 2 Ethernet ports and 2 USB ports, and supports SIM card and SD card. The built-in 4G network or Ethernet access to the Internet has the characteristics of fast speed and low latency.
Modbus Gateway IPC4-GW-KPBL101 supports routing function and cascaded switch data collection, which is convenient to collect more industrial equipment data. The software has complete software functions and covers most of the conventional application scenarios. Users only need to go through simple settings

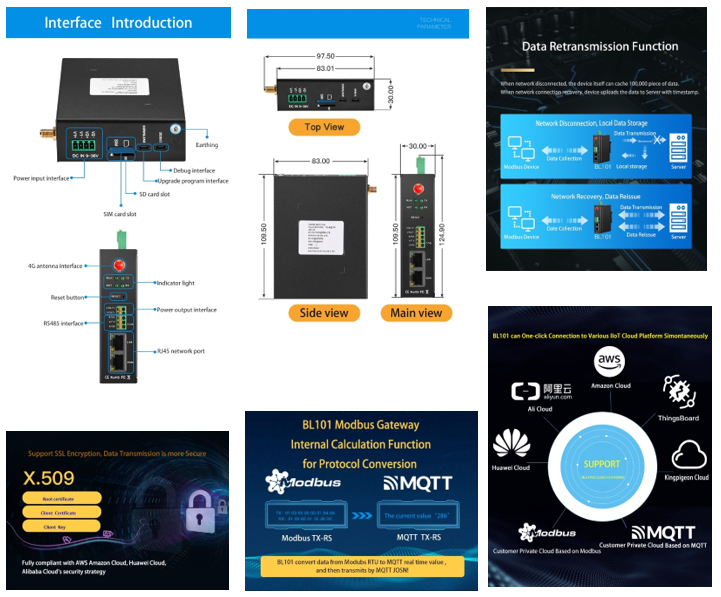

Features
• Downlink support: Modbus RTU Master, Modbus TCP Master
• Uplink support: Modbus TCP, MQTT, OPC UA, Huawei Cloud IoT, Alibaba Cloud IoT, AWS IoT, Golden Pigeon Cloud and other protocols
• Wide working voltage design, support 9-36V DC power supply, the interface is terminal mode, with two power input interfaces, you can choose one of them at will, and both of them are equipped with anti-reverse protection design. Support 1 power output, the output voltage is equal to the input voltage
• Support 1x RS232/RS485 optional input
• The serial port baud rate supports 2400bps-115200bps; the stop bit supports 1, 2 bits, the data bit supports 7, 8 bits, and the None, Odd, Even check modes are supported
• Support 2x RJ45 Ethernet ports, 1LAN +1 WAN respectively, WAN port and LAN port can directly collect equipment or equipment on cascade switch, with link and data indicator, network port built-in isolation transformer, up to 2KV electromagnetic isolation
• Support POE power receiving (optional function), saving wiring costs
• Support routing function
• Support 4G function, APN parameters can be set
• Support Modbus RTU to Modbus TCP, transparent transmission protocol
• Support the RESET button to restore the factory function (long press in the power-on state until the indicator light goes out) to prevent parameter setting errors
• Support hardware watchdog, with high reliability
• Use metal shell material, protection grade IP30, metal shell and system are safely isolated, especially suitable for industrial control field applications
• The device is small in size, 30mm*83mm*109.5mm, and supports wall-mounted installation and industrial rail installation
|
Category |
Parameter |
Description |
|
Power Source |
Input Voltage |
DC 9～36V |
|
Consumption |
Normal 85mA@12V, Max 117mA@12V |
|
|
Wiring |
Support inverse connection protection |
|
|
Network Interface |
Interface Specifications |
2 x RJ45, 10/100Mbps, Adaptive MDI/MDIX。 |
|
Port Protection |
ESD ±16kV(Contact); ±18kV(Air) |
|
|
EFT 40A (5/50ns) |
||
|
Lightening 6A（8/20µs） |
||
|
Serial Port |
Serial Port |
1 x RS232/RS485 (Default is RS485, Optional RS232) |
|
Baud Rate |
2400bps-115200bps |
|
|
Data Bit |
7,8 |
|
|
Parity Bit |
None, Even, Odd |
|
|
Stop Bit |
1, 2 |
|
|
Port Protection |
ESD ±8kV (Contact); ±15kV(Air); |
|
|
EFT 2KV, 40A （5/50ns）。 |
||
|
Power Output |
Output Voltage |
1 channel 9～36 V DC (Equal to input power voltage) |
|
SIM Card Slot |
Quantity |
1 |
|
Specification |
Drawer design, Support 1.8V/3V SIM/UIM card (NANO) |
|
|
Protection |
Inbuilt 15KV ESD protection |
|
|
USB Port |
Quantity |
1* program downloading+1*program debugging |
|
Spec |
Micro USB OTG |
|
|
Protection |
Over Current Protection |
|
|
4G (Optional) |
Antenna Quantity |
1 |
|
Antenna Type |
SMA |
|
|
L-CE version |
GSM/EDGE:900,1800MHz |
|
|
CAT-1 version |
GSM:900,1800 |
|
|
FDD-LTE:B1,B3,B5,B8 |
||
|
TDD-LTE:B34,B38,B39,B40,B41 |
||
|
Software Parameter |
Network Protocol |
IPV4, TCP/UDP, DHCP, DNS |
|
IP Retrieving |
Static IP/DHCP |
|
|
Transmission |
Support Transparent Data Transmission |
|
|
DNS |
Support Domain Name Resolution |
|
|
Configuration |
PC configuration, support WIN XP/WIN 7/WIN 8/WIN 10 |
|
|
Cache Size |
Transmit: 8Kbyte, Receive: 8Kbyte。 |
|
|
Register Pack |
Support custom registration package |
|
|
Heartbeat PCK |
Support custom heartbeat package |
|
|
Safety Certification |
MTBF |
≥100,000 hours |
|
EMC |
EN 55022: 2006/A1: 2007 (CE &RE) Class B |
|
|
IEC 61000-4-2 (ESD) Level 4 |
||
|
IEC 61000-4-3 (RS) Level 4 |
||
|
IEC 61000-4-4 (EFT) Level 4 |
||
|
IEC 61000-4-5 (Surge)Level 3 |
||
|
IEC 61000-4-6 (CS)Level 4 |
||
|
IEC 61000-4-8 (M/S) Level 4 |
||
|
Other |
CE, FCC |
|
|
Environment Condition |
Working |
-40～80℃, 5～95% RH |
|
Storage |
-40～85℃，5～95% RH |
|
|
Others |
Case Material |
Metal |
|
Size |
30mm×83mm×110mm(L*W*H) |
|
|
Protection |
IP30 |
|
|
Net Weight |
291.2g |
|
|
Mounting |
Wall-mounting, DIN Rail mounting |
